Hydrogen Analyzers H2

Michell Instruments

  • Gas analyzer / thermal conductivity / nitrogen / for hydrogen

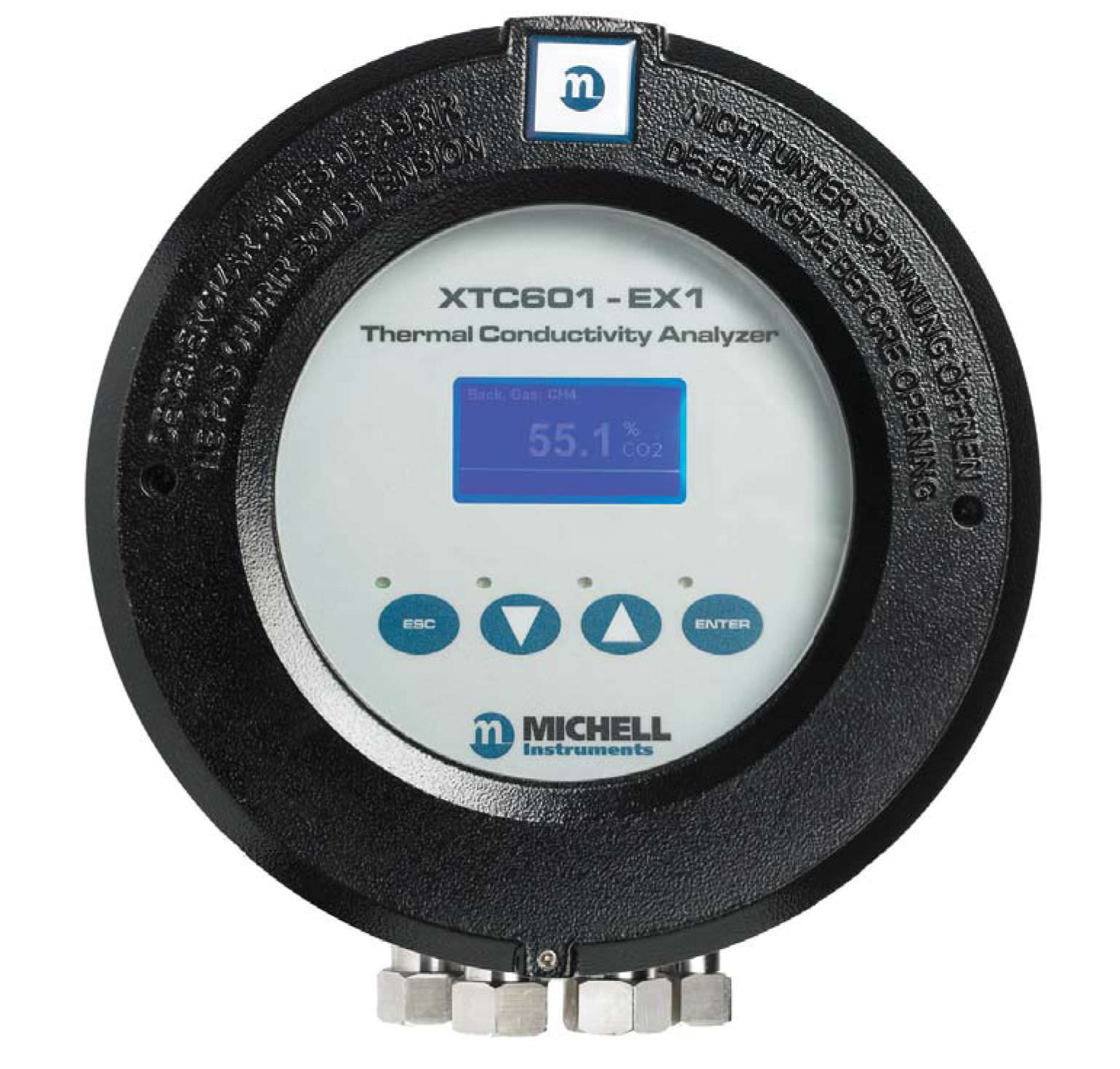

0 - 100 %, 100 - 600 ml/min | XTC601

Article: 00062839

Gas analyzer / thermal conductivity / nitrogen / for hydrogen

A robust, linear and stable thermal conductivity analyzer for measurement of binary gas mixes such as air in hydrogen, nitrogen, argon, helium or carbon-dioxide. The sensor is housed in a rugged casing, making it suitable for a wide range of applications. When the flame arrestors are fitted, the analyzer becomes explosion-proof and suitable for hazardous areas.

Product Features

Suitable for use in ATEX, IECEx, TC TR Ex & CCSAUS certified Hazardous Areas
Optional status LEDs following NAMUR standard
Compact and rugged design with an EExd enclosure and 4-20 mA output
Touch-screen display allows calibration or adjustment without the need for a hot works permit
Accuracy of better than ±2% full scale
IP66 rated enclosure
Low cost of ownership due to minimal maintenance
Ranges available: 0-5 up to 0-100%
Stability ±0.5% per month (of span)

Specifications

  • Measured value: gas, thermal conductivity
  • Gas type: nitrogen, for hydrogen, oxygen
  • Analyzed material: binary
  • Portability: housed
  • Other characteristics: heavy-duty, rugged, for harsh environments, explosion-proof, calibration
