SPACELITE HT 40 Vision

Article: 00066950

Fold-up door / exterior / industrial / glass

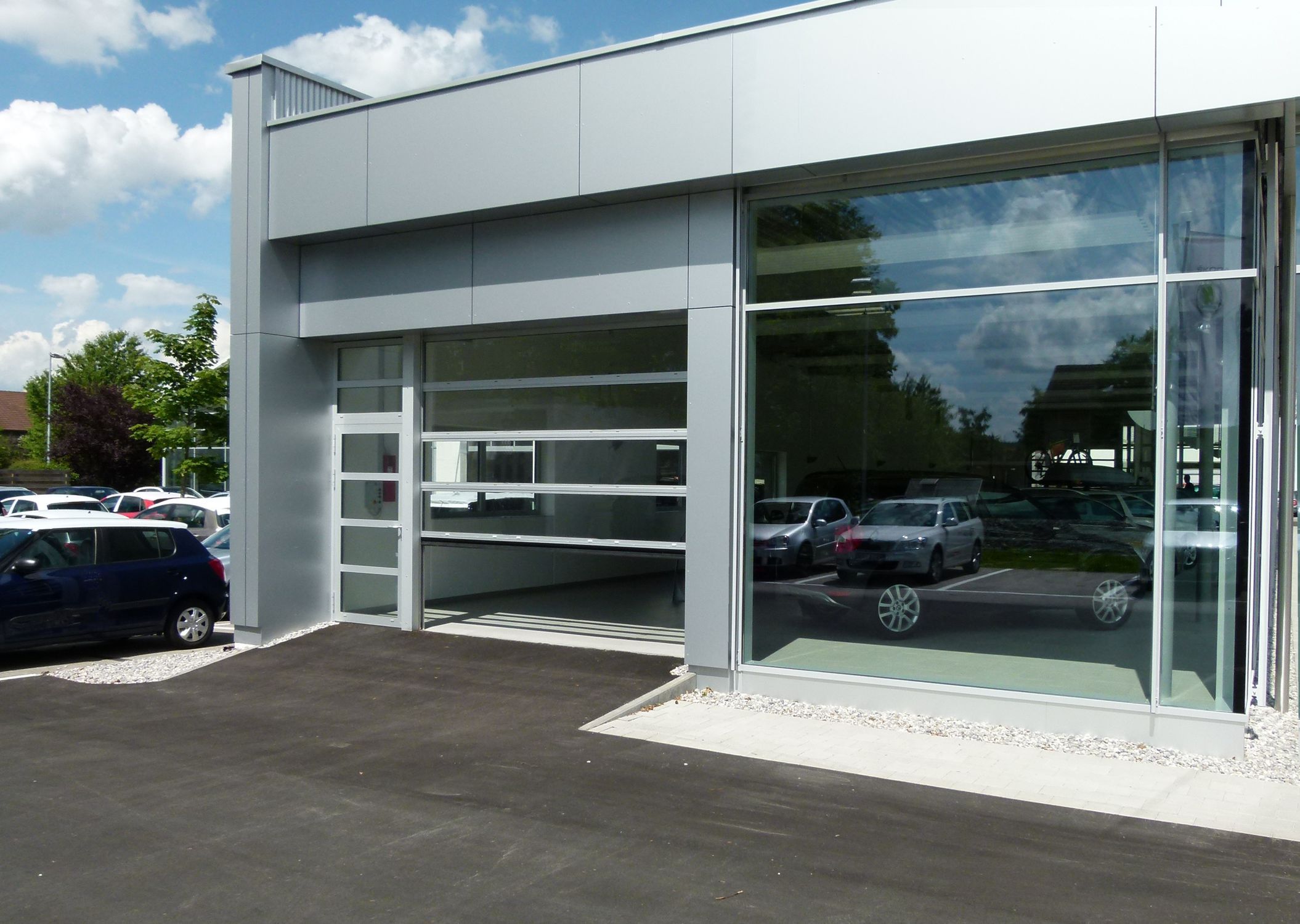

A door turns into a glass façade

Very often in modern, representative buildings, industrial doors form an architectural foreign body. With real glass and the design of a glazed curtain wall the new stacking door SPACELITE HT40 Vision can contribute to a sophisticated solution both in design and in technology. In terms of sustainability it sets a new landmark due to its high-performing thermal insulation, its excellent air tightness and its long life cycle.

A representative architectural design becomes more and more a decisive criterium for an industrial enterprise or for car dealership buildings. The building skin suppliers offer here a nearly endless variety of possibilities. Conventional industrial doors however can only respond to this demand in a very restricted way. With the new door type ?Vision? in glass façade style Butzbach now offers a state-of-the-art design option for a seamless integration into most building skins. Together with an individual colour and surface finishing a conclusive architectural solution can be created.

With thermal insulation values of Ug = 1.1 W/m2K, the toughened safety glass used for the double glazing extends sustainability and environmental responsibility in building to an area which is often neglected: the doors. In addition, real glass is substantially more resistant against scratch marks or traces from cleaning, doesn?t show visual distortions, and soiling, blooming or fogging in the space between the panes cannot occur. Up to a door width of 3.5 m the door elements can be executed as one unit without vertical inter-spacer, with visually adaptable inter-spacers the width is extended up to 5.0 m.

Specifications

  • Type: fold-up
  • Applications: exterior, industrial
  • "material: glass, aluminum
  • Other characteristics: glass
