TC 30 series

Article: 00073254

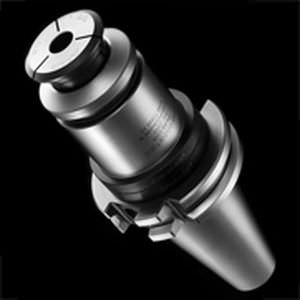

SK tool-holder / Morse taper / high-precision / balanced

T.I.R. Taper Accuracy AT3, better spindle-to-holder fit and accuracy
Surface Finish max. Ra 0.25, higher clamping force and higher transferable torque
ID Chip Hole per DIN 69873 with 10 mm diameter
Q+ Balancing, each toolholder fine-balanced, balancing-grade = G 2.5 @ 22000 min-1
Type H colletholders are ready to accept Hi-Q balancing rings which allow precision balancing of the system including cutting tool up to 80000 min-1 depending on the balancing rings used
Vibration dampening, for best machining results

Specifications

  • Type: SK
  • Mounting system: Morse taper
  • Applications: high-precision
  • Other characteristics: balanced
  • Diameter: Min.: 10 mm
  • Length: Min.: 50 mm
