Quadruplex VF2167

Article: 00101089

4-sided film applicator

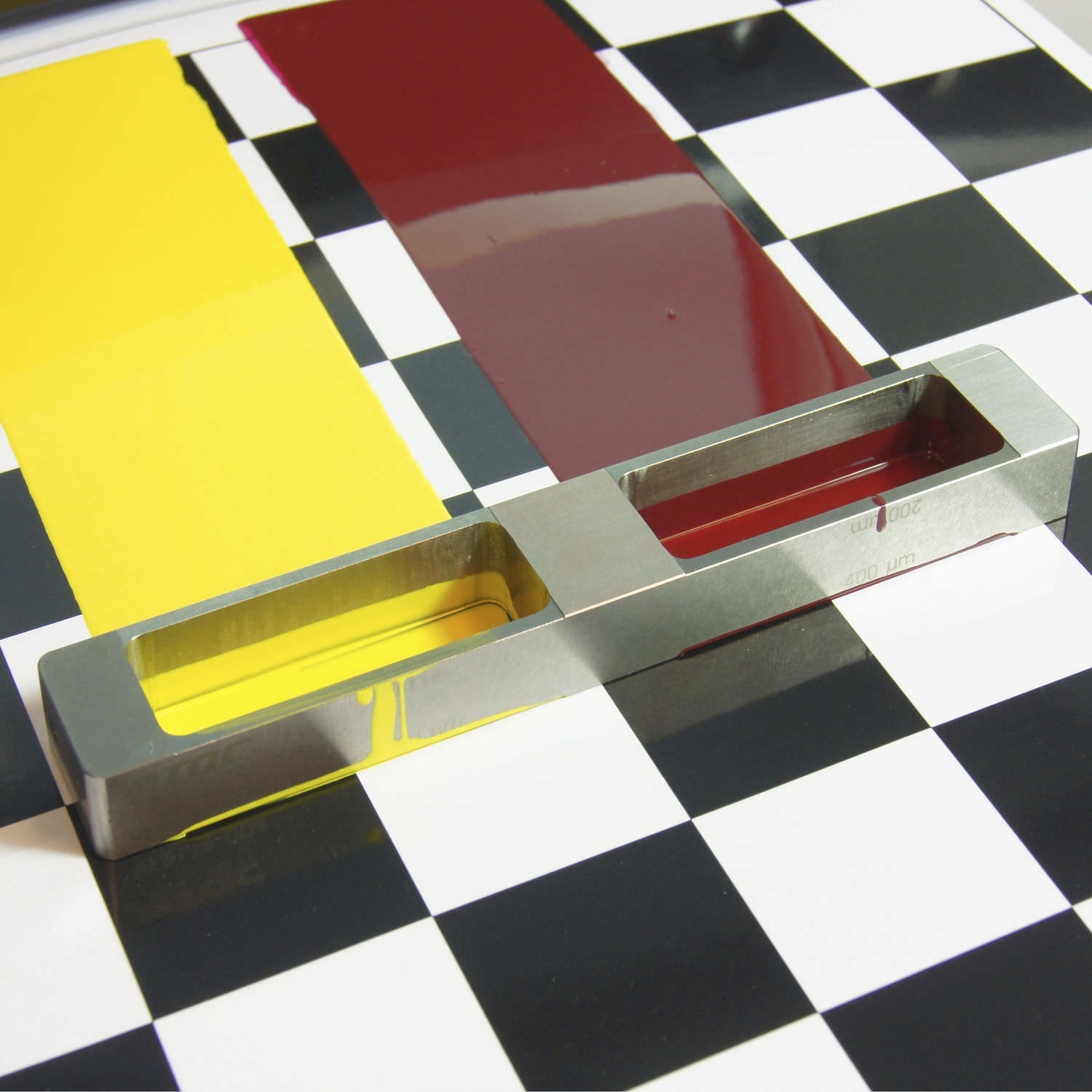

The TQC 4-Sided Film Applicator (Quadruplex) has four application sides for applying paint films with four different predefined thicknesses, in film width 60 or 80 mm. One side of the applicator is supplied with a guidance support for straight application. This support may be removed as well. The high grade stainless steel will not be affected by acid or base elements.

VF2167 - TQC Film Applicator (Quadruplex) width 60mm, four gaps, size on request.
Max. gap size: 3000µm

VF2168 - TQC Film Applicator (Quadruplex) width 60mm, gaps 15, 30, 60 and 90 µm

VF2169 - TQC Film Applicator (Quadruplex) width 60mm, gaps 30, 60, 90 and 120 µm

VF2170 - TQC Film Applicator (Quadruplex) width 60mm, gaps 50, 100, 150 and 200 µm.

VF2172 - TQC Film Applicator (Quadruplex) width 80mm, four gaps, size on request.
Max. gap size: 3000µm

VF2173 - TQC Film Applicator (Quadruplex) width 80mm, gaps 15, 30, 60 and 90 µm

VF2174 - TQC Film Applicator (Quadruplex) width 80mm, gaps 30, 60, 90 and 120 µm

VF2175 - TQC Film Applicator (Quadruplex) width 80mm, gaps 50, 100, 150 and 200 µm

VF2179 - TQC Film Applicator (Quadruplex) width 2 x 60mm, each with 4 gaps: 100/200/300/400µm

Specifications

  • Other characteristics: 4-sided
