MTP series

Article: 00104954

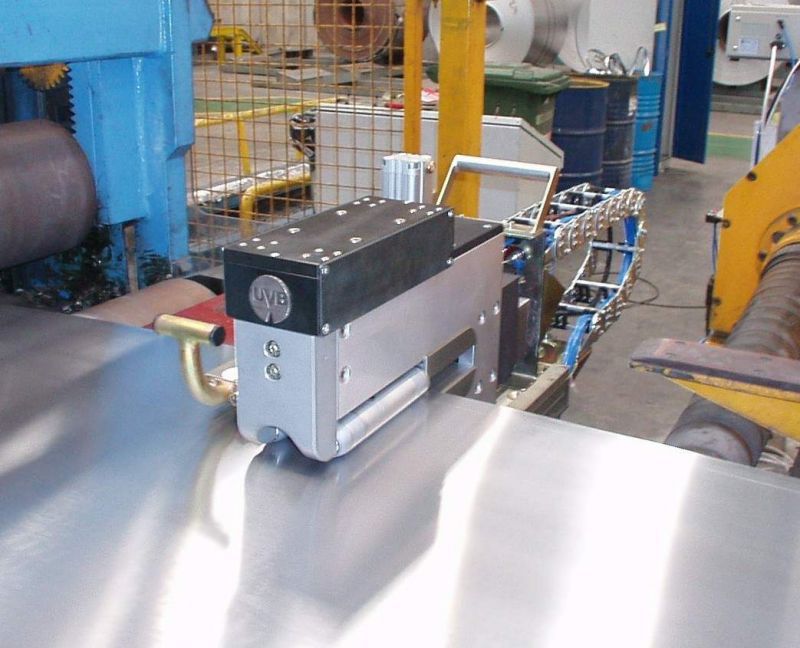

Thickness gauge

The design of the diamond contacts, which are permanently touching the measured strip, secures they do not impair the appearance of the material and have long service life. The pneumatic thrust of the contacts on the strip can be continuously controlled.

This continuous gauge was developed as an absolute measuring device requiring no mechanical readjustment for the nominal thickness of the measured strip and its absolute measuring capability allows to use it also for precision calibration of other (e.g. contactless) gauges during the production process.

The control unit enables:
digital thickness display
analogue display unit to show the deviation from the set nominal thickness
setting and monitoring of 2 lower and 2 upper limits
digital calibration of the gauge
extension module connection
Features:
absolute digital display of the measured thickness
independence of the measured material type
no mechanical adjustment of the gauging head for nominal thickness
easy operation
5 year warranty on diamond contacts

Specifications
