Oxidizers And Reducers

Kba Metalprint

  • Regenerative oxidizer / thermal / for the printing industry / for the chemical industry
  • Regenerative oxidizer / thermal / for the printing industry / for the chemical industry
  • Regenerative oxidizer / thermal / for the printing industry / for the chemical industry
  • Regenerative oxidizer / thermal / for the printing industry / for the chemical industry

Article: 00105693

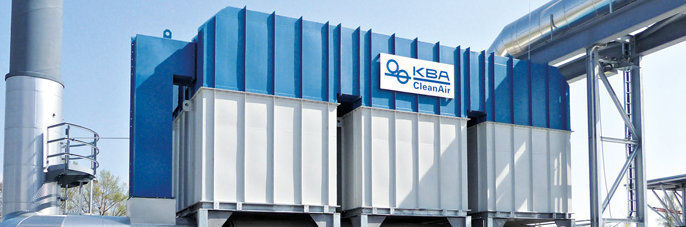

Regenerative oxidizer / thermal / for the printing industry / for the chemical industry

KBA CleanAir RTO systems are suitable for a wide range of applications. Ideal conditions are exhaust air flows, with low to medium solvent concentrations, where no or minimal additional waste heat is required.
With this method, autothermal operation (operation without the need for additional primary energy), is possible with solvent concentrations as low as 1.2 g/m³. The RTO is still very cost effective at lower concentrations because the internal heat recovery is so high, up to 98%.

The solvents contained in the exhaust air are oxidised to produce carbon dioxide and water vapour in a combustion chamber at temperatures from approximately 800 to 830°C. The internal heat recovery is achieved in this case by using the highly effective ceramic heat exchanger system, XtraComb ®, developed by KBA. This is flushed through alternately with clean gas and raw gas so as to absorb as much of the heat energy from the hot clean gas and transfer the energy to the cold raw gas.
The regenerative method is an intermittent process, were the exhaust air flow is switched over cyclically, providing a energy transfer between the hot clean gas and the cold raw gas.
KBA CleanAir systems are designed to minimize operating costs. They are always customer optimized e.g. using special control systems according to the operating conditions in each case, in order to maximise efficiencies and minimise operating costs.
Various series are available with this method depending on the application:
2-canister
3-canister
Small systems: RTOcompact

Specifications

  • Technology: regenerative, thermal
  • Applications: for the printing industry, for the chemical industry
  • Other characteristics: cost-effective
