Pocket Filters

Schenck Process

  • Bag filter / air / dust

LVS/LVSC

Article: 00110674

Bag filter / air / dust

Industrial Air and Dust Filters (with bag)
Schenck Process Pulse Jet Filters can be used in a wide variety of air filtration applications. There are nine different products in the Pulse Jet family of filters that provide a wide range of air flows, access positions and air inlet arrangements. All models incorporate the same compressed air cleaning technology, reliable components and high quality construction.

LVS/LVSC Pulse Jet Filters

Large Vent Square (LVS) are similar to the AVS with side removal, square bodied filters, but are designed to handle medium to high air volumes.

The LVS filter is a square bodied pulse jet cleaned filter unit, designed to handle medium to high air volumes up to 50,000m³/hr., dependent on the type of dust. The filter is particularly suited for applications where headroom is an issue, since the bags can be removed via an access door on the side of the unit.

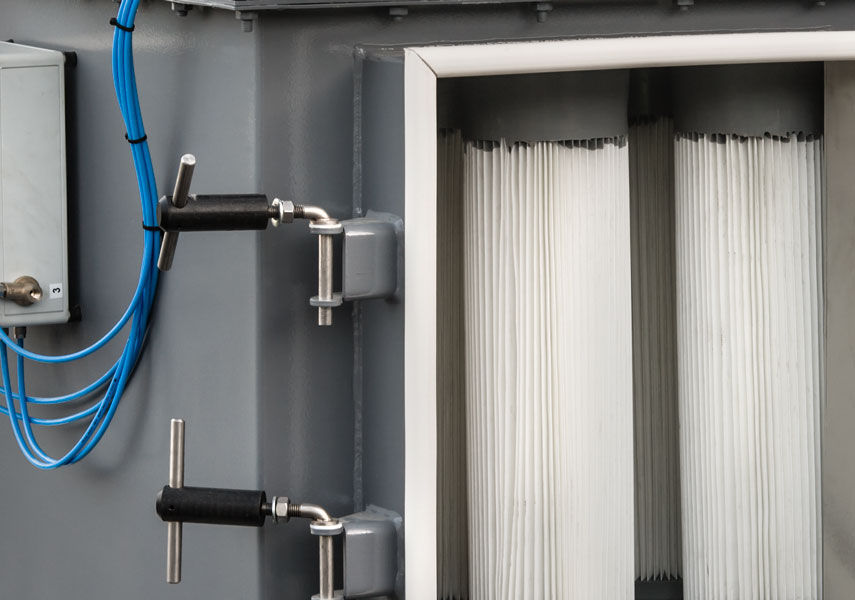

The same basic filter housing can also be fitted with pleated cartridges to offer higher filtration efficiencies and more filter area. The filter is then designated an LVSC (Large Vent Square Cartridge), and can handle air volumes up to 70,000 m³/hr.

Design features of LVS/LVSC filters:

Particularly suited for applications where headroom is an issue.
Bags can be removed via an access door on the side of the unit.

Specifications

  • Designed for: air
  • Type: bag
  • Applications: dust
  • Flow rate: 50000 m³/h (1765733.31 ft³/h), 70000 m³/h (2472026.63 ft³/h)
