Pressure Sensors

Adcon Telemetry

  • Absolut pressure sensor / piezoresistive / with digital output / rugged

PA-1

Article: 00113975

Absolut pressure sensor / piezoresistive / with digital output / rugged

Pressure monitoring with a spectacular price-performance ratio!

The Adcon PA-1 absolute pressure sensor with a G1/4" manometer thread makes pressure monitoring affordable for any kind of application. Its low price notwithstanding it's a top quality product Made in Switzerland.

Digital temperature compensation ensures high accuracy and repeatability, while at the same time providing excellent long term stability. This pressure transducer takes absolute readings within a range of 0 to 10bar (also available with a measuring range of 0 to 30bar).

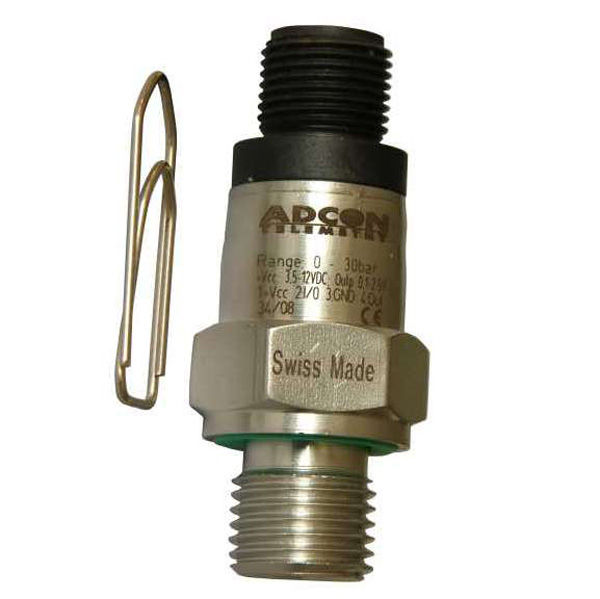

As the image above shows the sensor is extremely small and compact. A robust M12 connector accepts a female jack as can be found on the optionally available 5 and 10m cables. Matching adapters for G1/2" and NPT threads are available upon request.

Specifications

  • Type: absolut
  • Technology: piezoresistive
  • Output signal: with digital output
  • Protection level: rugged
  • Other characteristics: female, compact
  • Process temperature: Min.: -40 °C (-40 °F)
  • Pressure range: 10 bar (145.04 psi)

Other items

In this category | In this category, (Adcon Telemetry)

Leave request for price calculation right now, we will send you best prices.
