Pressure Sensors

Keller

  • Absolut pressure sensor / silicon / piezoresistive / miniature
  • Absolut pressure sensor / silicon / piezoresistive / miniature
  • Absolut pressure sensor / silicon / piezoresistive / miniature

M5 series

Article: 00114036

Absolut pressure sensor / silicon / piezoresistive / miniature

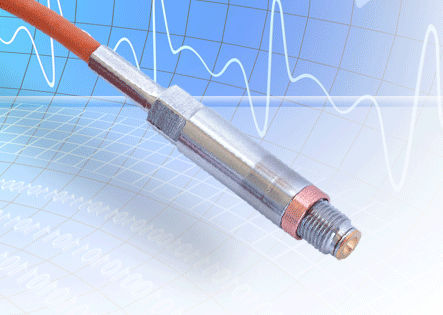

Ultra-Fast Miniature Pressure Transducer Series M5

Bandwidth 50 kHz / Resistant up to 200 °C

The piezoresistive pressure transducers Series M5 are ideal, thanks to the M5 fine thread, for taking measurements at close proximity in places where access is a problem and in very thin pipes ? exactly the kinds of conditions associated with engine test benches. The front-flush design prevents gas bubbles interfering with fluid measurements and supports measurements up to 200 °C without a cooling adapter. The extreme dynamic range of 0?50 kHz makes it possible to record very fast pulsations just as reliably as those associated with static pressure values. A vibration-resistant Teflon FEP cable (IP67) ensures the 80 mV output signal is routed securely out of the hot environment and then onwards for processing.

Sensor technology
The Series M5 sensor incorporates a stable silicon sensor which is backside-soldered directly to a supporting element designed for excellent fluid dynamics. This construction eliminates the disadvantages of sealants, adhesives, separating membranes or capillary tubes in high temperature environments. The practically-flush connection to the measurement media is critical to the excellent dynamic range of 0?50 kHz. The micromechanical design delivers absolute measuring ranges of 3, 10 and 30 bar, overpressure protection of up to 5 times measuring range
and effective isolation of mounting forces, and a very low dead volume

Specifications

  • Type: absolut
  • Technology: silicon, piezoresistive
  • Other characteristics: miniature
  • Process temperature: Min.: -20 °C (-4 °F)
  • Pressure range: Min.: 3 bar (43.51 psi)
