Pressure Sensors

Micro Sensor Co

  • Diaphragm pressure sensor / stainless steel
  • Diaphragm pressure sensor / stainless steel
  • Diaphragm pressure sensor / stainless steel
  • Diaphragm pressure sensor / stainless steel

0~3.5MPa

Article: 00113832

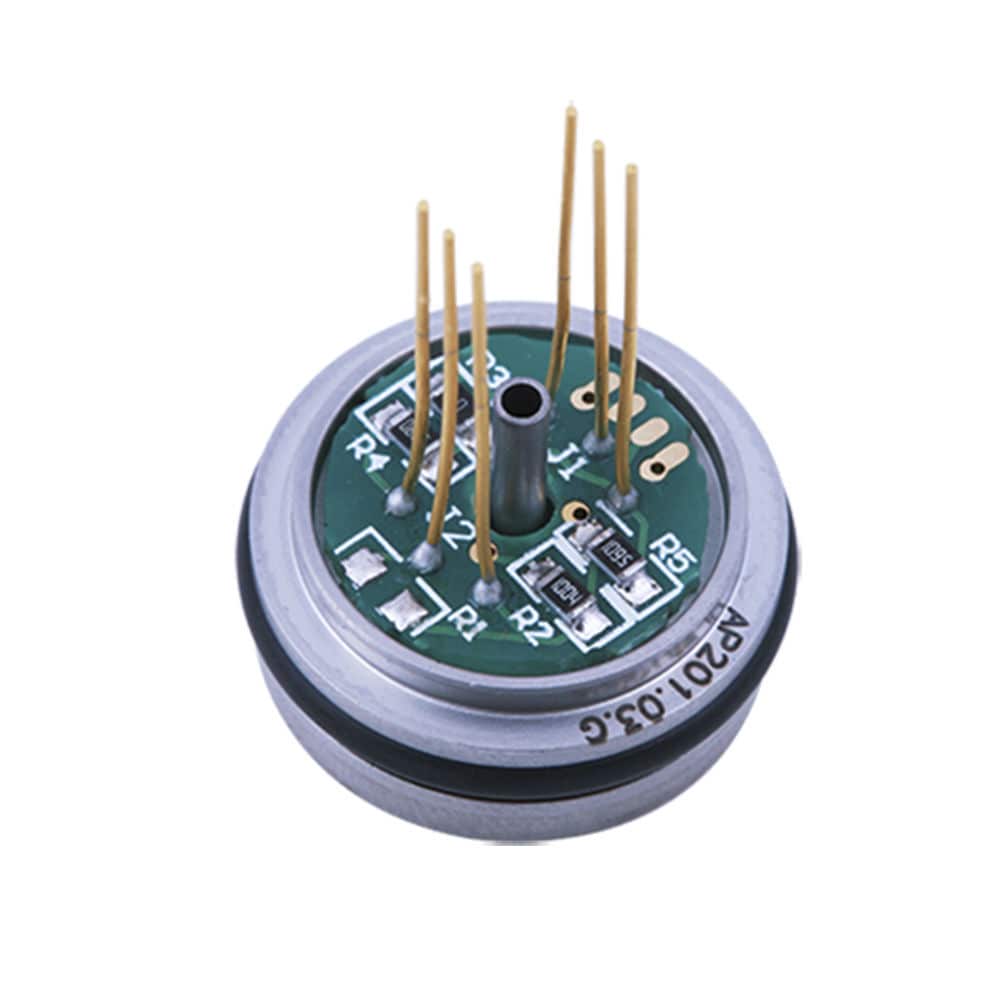

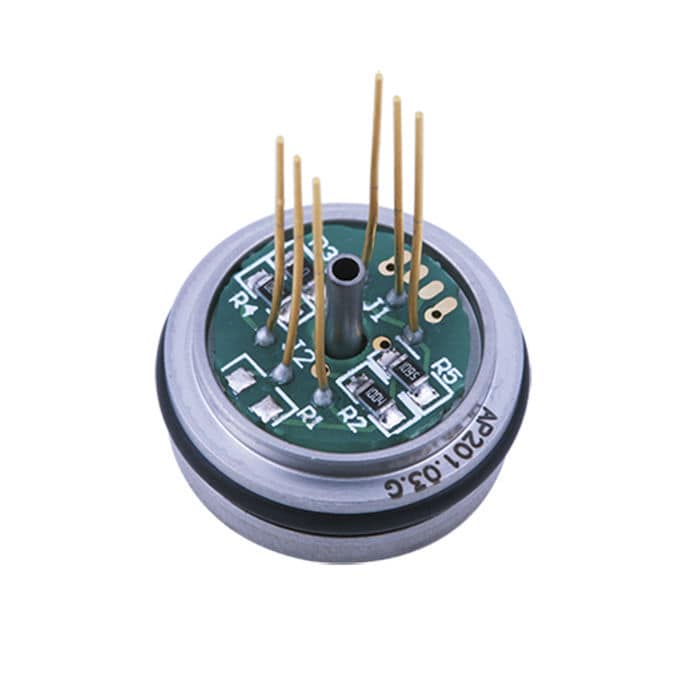

Diaphragm pressure sensor / stainless steel

Features

·Cost Effective
·Chip from international famous brand; Laser Trimming for temperature compensation
·Measuring range:0kPa~100kPa?3.5MPa
·Constant current power supply
·Isolated construction, enable to measure various media
·?19mm standard OEM piezo-resistive pressure sensor
·Full stainless steel 316L

Application
·Industrial process control ·Level measurement ·Gas, liquid pressure measurement
·Pressure checking meter ·Pressure calibrator ·Liquid pressure system and switch
·Cooling equipment and air conditioning system ·Aviation and navigation inspection

Introduction
AP201 pressure sensor is manufactured in automatic mass production line. It is cost effective. AP201 outline, installation, dimension and sealing methods are similar to mainstream sensors of international famous brand and Micro Sensor brand. They have high interchangeability. It is widely used for pressure measurement of media which is compatible with stainless steel and Viton.

Electric Performance
Power supply: ?2.0mADC
Electric connection: Kovar pin
Common Mode Voltage Output: 50% of Input (typical)
Input Impedance: 2k??8k?
Output Impedance: 3.5k??6k?
Response (10%?90%): Insulation Resistor: 100M?,100VDC
Overpressure: 1.5 times FS
Construction
Diaphragm: S.S.316L
Housing: S.S.316L
Pin: Kovar
O-ring: Silicon rubber
Net Weight: ~12g

Environment Condition
Position Effect: deviate 90° from any orientation, zero change ?0.05%FS
Shock: no change at 10gRMS, (20?2000)Hz
Impact: 100g?11ms
Media compatibility: the gas or liquid which is compatible with stainless steel and Viton

Specifications

  • Technology: diaphragm
  • Other characteristics: stainless steel
  • Process temperature: Min.: -40 °C (-40 °F)
  • Pressure range: Min.: 0 Pa (0 psi)
