DS85-P

Article: 00113678

Differential pressure sensor / diaphragm / with electrical output signal / wall-mount

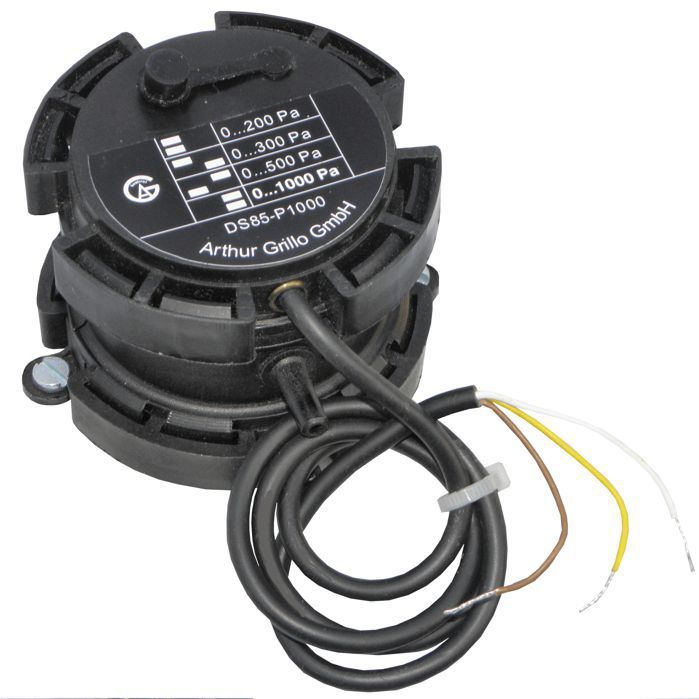

The DS85-P is manufactured by Arthur Grillo. It is a differential pressure sensor, that is equipped with a lead diaphragm element. It is suitable for relaying pressure, draught or differential pressure of non-aggressive gases.

It has 4 calibrated measuring ranges, which can be chosen via DIP-switch selectable. It has the shortest measuring range of 0...50 Pa. It also has an analog output of 0...10 V or 4...20 mA.

It is supported by 24 V AC oder 24 V DC supply voltage. It meets with IP65 protection class standards.

- Analog output 0...10 V or 4...20 mA
- Supply voltage 24 Vac oder 24 Vdc
- 4 calibrated measuring ranges selectable via DIP-Switch
- Compact size of about ca. 70 mm

MAIN CATEGORY: Pressure sensors
TYPES: membrane / differential
CATEGORY: pressure transmitter / pressure sensor
TECHNOLOGY: differential-pressure / membrane
PRODUCTS: for gas / for neutral gas / for air
PROTECTION LEVELS: IP65
OTHER CHARACTERISTICS: precision with diaphragm seal / with electrical output signal / with selectable measurement range / wall-mount / with pressure indicator
DOMAINS: industrial / for OEM / HVAC
PRESSURE: Min. 0 Pa / Max. 6.000 Pa

Specifications

  • Type: differential
  • Technology: diaphragm
  • Output signal: with electrical output signal
  • Mounting: wall-mount
  • Protection level: IP65
  • Applications: industrial, for inert gases, for OEM, HVAC
  • Other characteristics: compact, precision, with diaphragm seal, with selectable measurement range
  • Pressure range: Min.: 0 Pa (0 psi)
