Pressure Sensors

Fox S R L

  • Differential pressure transducer / IP67 / IP65 / brass
  • Differential pressure transducer / IP67 / IP65 / brass

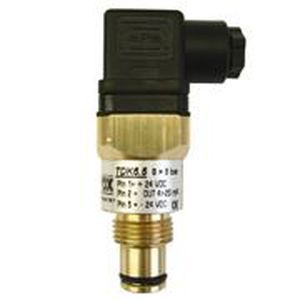

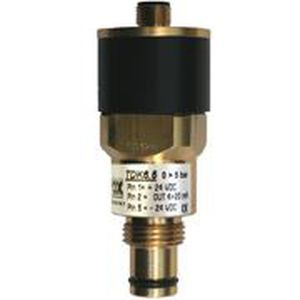

TDK6

Article: 00113940

Differential pressure transducer / IP67 / IP65 / brass

Differential pressure transducer TDK6 sends an electrical signal proportional to the difference of value between two pressures. Two versions are available: the first execution has the M3 electric connector with output signal 4 ? 20 mA; the second execution has the M12 connector with 4 ? 20 mA output signal and 2 temporized signal alarms, set at 16 mA and 20 mA. The maximum allowable pressure is 420 bar and the differential pressures are available from 1 to 9 bar. All the parts on contact with the fluid are made of brass, or stainless steel on request.

Specifications

  • Type: differential
  • Protection level: IP67, IP65
  • Other characteristics: brass, stainless steel
  • Process temperature: Min.: -20 °C (-4 °F)
  • Pressure range: Min.: 0 bar (0 psi)
