Pressure Sensors

Opsens

  • Fiber optic pressure sensor / diaphragm / MEMS / for hazardous areas

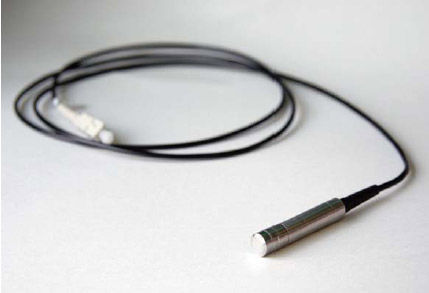

OPP-C

Article: 00113954

Fiber optic pressure sensor / diaphragm / MEMS / for hazardous areas

KEY FEATURES
Compact and ultra-robust
100 to 1000 PSI range
Excellent accuracy (0.1%)
Completely sealed for immersed applications
EMI/RFI/Lightning immunity; intrinsically safe
Rugged stainless steel body
Long term reliability

APPLICATIONS
Geotechnical applications
In-situ process monitoring
Harsh subsurface monitoring equipment
High temperature environment with corrosive chemicals.
Groudwater elevation surveillance in wells and streams
Pressure monitoring in pumping stations
Hazardous environment
Static or dynamic pressure measurements conducted under confined space, hazardous and strong EMI/RFI/MRI environments

DESCRIPTION
Opsens? OPP-C, MEMS-based fiber-optic pressure sensor, is perfectly tailored to meet the challenge of pressure monitoring apllications in submerge and/or harsh environment.

The OPP-C sensor delivers long term accuracy, durbility and high fidelity pressure measuremnt with a pressure operating range up to 7000 kPa. The sensor is ideal for geotechnical applications. Completely sealed, with a stainless steel body and diaphragm, the OPP-C is designed to work in adverse conditions of temperature, pressure, and toxic or corrosive atmospheres.

With the inherent advantages of fiber optic, it is not subject to interference from electromagnetic interference, vibrations and lightning that might be present in the sensing environment.

The OPP-C pressure sensor is compatible with all Opsens? WLPI signal conditioners. The compact and very robust probe can be customized according to specific client needs. The fi ber optic cable cable lead can be extended up to 3 kilometers long.

Specifications

  • Technology: fiber optic, diaphragm, MEMS
  • Applications: for hazardous areas
  • Other characteristics: high-temperature, compact
  • Process temperature: Min.: -20 °C (-4 °F)
  • Pressure range: 7000000 Pa (1015.26 psi), 350000 Pa (50.76 psi), 690000 Pa (100.08 psi)
