Pressure sensors

ZHANGJIAGANG TM SENSOR CO.LTD

  • Flush pressure sensor / IP67 / for highly viscous products / high-accuracy
  • Flush pressure sensor / IP67 / for highly viscous products / high-accuracy

NS-W

Article: 00113825

Flush pressure sensor / IP67 / for highly viscous products / high-accuracy

Widely used in Petrochemical, Heavy-duty diesel engine dynamic and static experiment,drugs manufacturing and food processing etc;

?No cavity, to prevent the plug, measurable to viscosity liquids;
?Through the EMC, temperature and humidity test;
?Full stainless steel structure;
?Through the RoHs, CE certification.

1.Measuring range 0-1.0...1.6...3.0...70...90...100MPa
2.Overload pressures 200?F.S 150?F.S 150?F.S
3.Burst pressure 500?F.S 300?F.S 200?F.S
4.Operational Mode Gauge?Absolute
5.Measuring Media Gas,Oil(compatibale with 304,316L strainless steel)
6.Output signal 0-100mv,4 conductor,5VDC(operating voltage)
4-20mA,2 conductor,0-5VDC,3 conductor,0-10VDC,3 conductor
7.Operating voltage 24VDC(12-32VDC)
8. Accuracy ±0.1?F.S,±0.25?F.S
9.Long-term drift ?±0.1?F.S/year(typ)
10. Compensated temperature range -20?+80?
11. Operating temperature range -40?+80?

Specifications

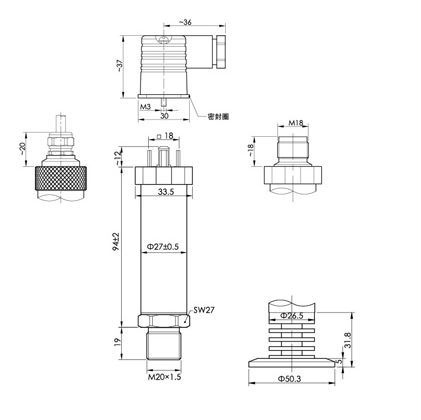

  • Mounting: flush
  • Protection level: IP67
  • Applications: for highly viscous products
  • Other characteristics: high-accuracy, stainless steel
  • Process temperature: Min.: -40 °C (-40 °F)
  • Pressure range: Min.: 0 Pa (0 psi)
