Pressure Sensors

Micro Sensor Co

  • Gauge pressure transmitter / absolut / diaphragm / piezoresistive

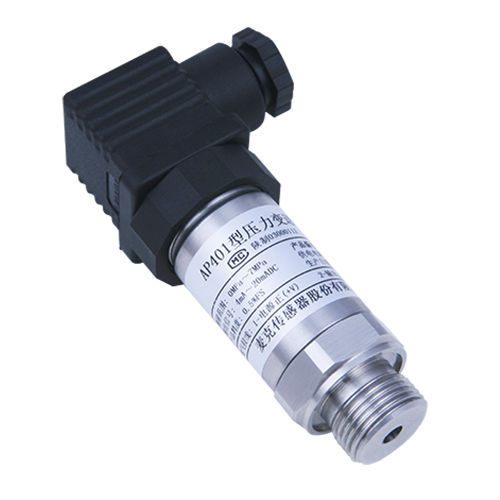

AP401

Article: 00113835

Gauge pressure transmitter / absolut / diaphragm / piezoresistive

Features
·Reliable performance, easy application
·Short protection and reverse polarity protection
·Measure gauge, absolute and sealed gauge

Introduction
AP401 product is piezo-resistive pressure transmitter with zero and span adjustable. It uses high stable and reliable pressure sensor and special circuit board to produce transmitter, and performance is good and reliable. AP401 pressure transmitter is used for measure and control of petroleum, chemi-industry, electric power, hydrology and flow pressure measure, etc.

Specification
·Pressure range: -100kPa?0 kPa?10 kPa?100MPa
·Overpressure: 1.5 times FS or 110MPa (min. value is valid)
·Pressure type: gauge/ absolute / sealed gauge
·Accuracy: ±0.5?FS
·Power supply: 11V?28V DC
·Output signal: 4mA?20mA DC?2-wire??0/1V?5V DC?3-wire?
·Zero thermal drift: ±0.1%FS/?(?100kPa)?±0.05%FS/?(?100kPa)
·Span thermal drift: ±0.1%FS/?(?100kPa)?±0.05%FS/?(?100kPa)
·Load: ??U-11?/0.02??2-wire???10k?3-wire?
·Long term stability: ±0.3%FS/year?max.?
·Compensation temp.: 0??50?
·Application temp.: -30??80?
·Storage temp.: -40??120?
·Housing protection: IP65
·Process connection: M20×1.5 male
·Electric connection: DIN43650 plug

Specifications

  • Type: gauge, absolut
  • Technology: diaphragm, piezoresistive
  • Process temperature: Min.: -30 °C (-22 °F)
  • Pressure range: Min.: -100000 Pa (-14.5 psi)
