• High-voltage probe

25 MHz | DP-25

Article: 00115038

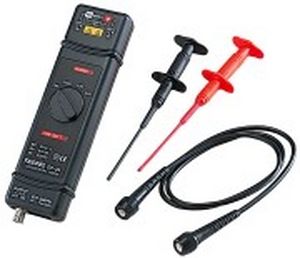

High-voltage probe

The DP-25 converts the high voltage differential input signal to a low voltage ground referenced signal for display on any Oscilloscope. The product FET input differential probe provides a safe means of measuring circuits with floating potentials up to 1000 V ( DC+ peak AC ) from ground and 1300V ( DC + peak AC ) differential. The effective V / DIV is the attenuation factor of x 20, x 50, x 200 multiplied by the scale factor of the Oscilloscope. It will be twice when the 50 ? load was used. For example, with the range set at x 200,

Specifications

  • Measured value: high-voltage
