  • Display interface controller

max. 4 Gbps | SSD28xx series

Article: 00115487

Display interface controller

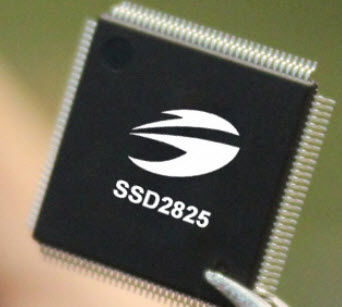

Solomon Systech MIPI Master Bridge Chips SSD2805/SSD2825 support high-speed, low-power displays in application-rich mobile devices.

SSD2825 is able to support display resolutions of up to WXGA (1280x800) at video speed, whereas SSD2805 supports up to WVGA (480x854).Both can support a main panel and a sub panel simultaneously. Furthermore, it adopts the physical layer of low voltage differential signaling as defined by MIPI specifications.

The SSD2805/SSD2825 is versatile enough to be interface with most baseband processors, application processors or co-processors now deploying in mobile products. The SSD2805/SSD2825 is able to operate in both High-Speed (HS) and Low-Power (LP) modes for data transmission to provide optimum power consumption, and will consume ultra-low power in the idle state. It contains an on-chip PLL for clock generation.

Specifications
