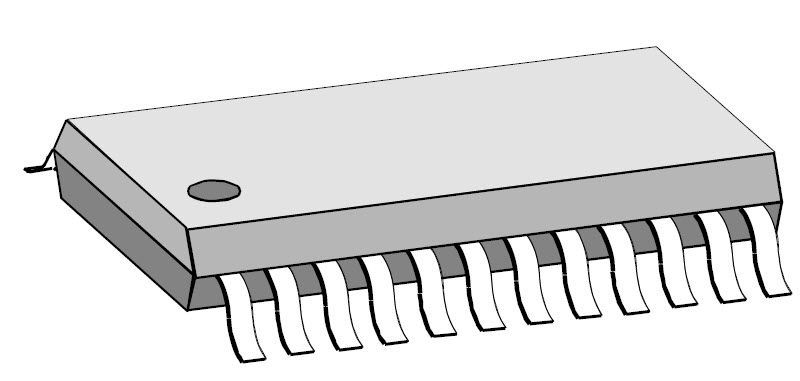

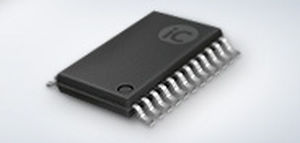

iC-MB4

Article: 00115448

Multi-point interface controller

Applications
Bi-directional communication in multi-sensor systems
Linear and rotary encoders
Motor-feedback systems
Features
Bi-directional BiSS communication with up to 3 slaves
Supports SSI protocol for uni-directional data transmission
Synchronous sensor data acquisition with cyclic transfer at data rates of up to 10 MHz
Slave register operations during cyclic data transfers
Automatic compensation of line delays and conversion times
Data lengths of up to 64 bits for sensor data, independently scalable for each slave
Data verification by CRC polynomials of up to 8 bits, adjustable per slave and data area
Separate memory banks enable free controller access during BiSS sensor data transfers
32 bytes of intermediate memory to ease bidirectional slave register communications
Parallel controller interface with an 8 bit data/address bus services Intel and Motorola devices with combined data and adress bus
Serial controller communication by SPI?- compatible mode
Single 3 V to 5 V supply, industrial temperature range
