XLt

Article: 00115693

Built-in PLC / compact / DIN rail / GPRS

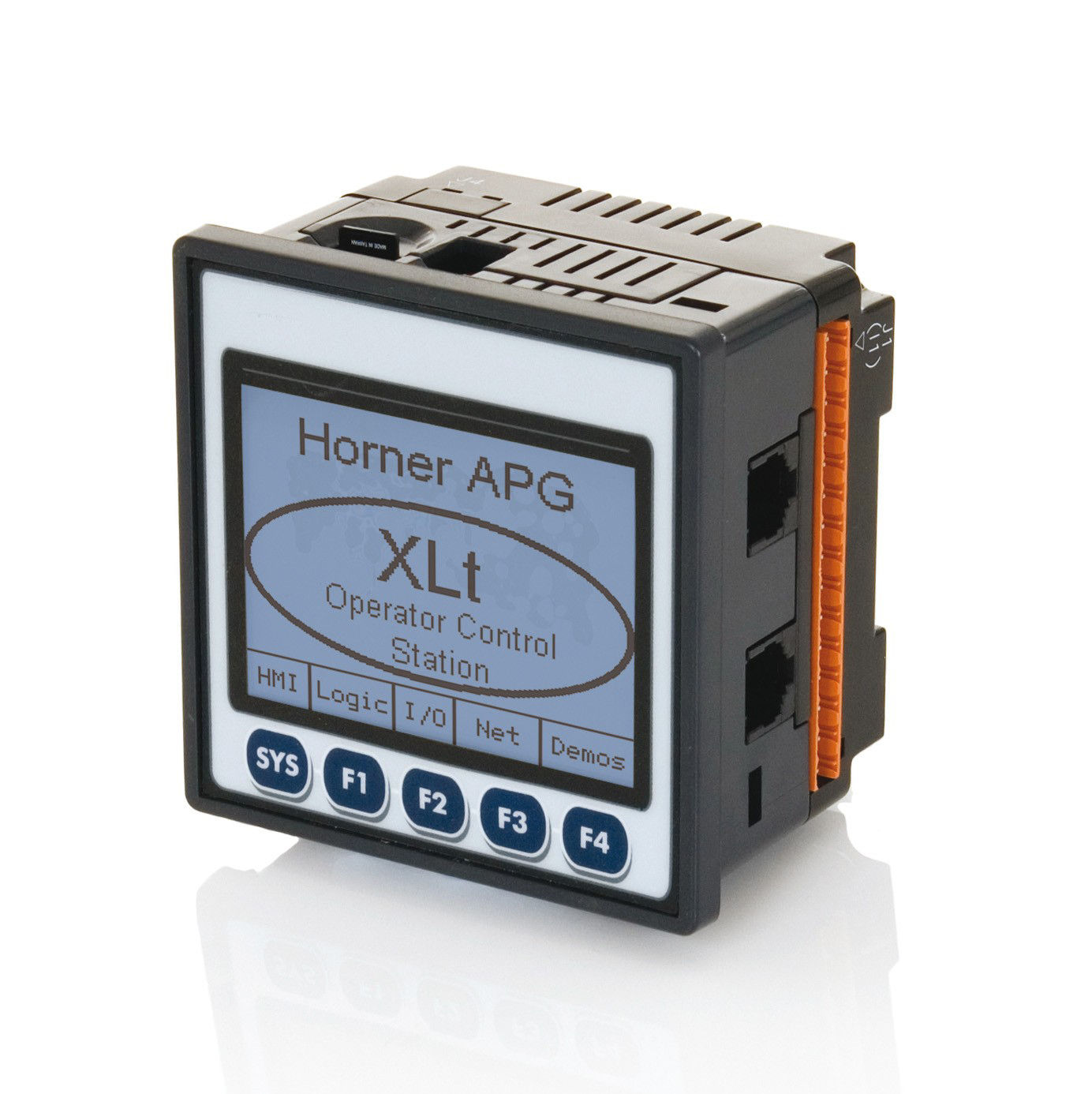

The XLt is a Programmable Controller with a built-in touch screen, I/O and networking, plus removable mass data storage as a standard.

The XLt is equipped with a high-resolution resistive touch screen. Its advanced transflective readable display means the XLt is ideally suited both for indoor AND outdoor use even in direct sunlight!

XLt is Programmed by own own fully IEC61131 Compliant Cscape software.

There are four models available featuring flexible levels of I/O. The XLt has extensive communications which currently boasts support for Ethernet, PSTN Telephone modem, GPS receiver and GSM/GPRS Modem technology.

Features are as Follows:-

160x128 pixel graphical display, with a high-resolution resistive touch screen for detailed user interface inclusing Four programmable function keys plus system button
1.2 ms/k scan time,256 kB internal memory with up to 2GB MicroSDT mass-memory storage
Two RS232/485 Serial Ports and CAN port as standard
Designed for IP65/NEMA 4X environment; panel or DIN-rail mountable (1/4 DIN Package 96x96mm)
Wide temperature range (0 to 60°C) and 10 - 30 VDC supply range
Available in Grey/Black&Blue or with Custom colours

I/O Expansion.

XLt Series I/O expansion is not limited to it's built-in I/O. SmartStix I/O is high-speed and can be local or highly distributed. SmartMod based I/O is a cost effective means of adding specialty or a mix of I/O types.

Architecture.

The XLt Series supports CsCAN or CANopen high-speed networking as standard, and Ethernet networking as a field-installable option. Single-point-of-connect (only CsCAN) allows seamless communications between the computer and any controller.

Specifications

  • Type: built-in, compact, DIN rail
  • Network: GPRS, Ethernet, RS232, fieldbus
  • Other characteristics: with integrated HMI, touch screen, high-speed
  • Input/output: I/O
