DG645

Article: 00116166

Delay generator / pulse / programmable / digital

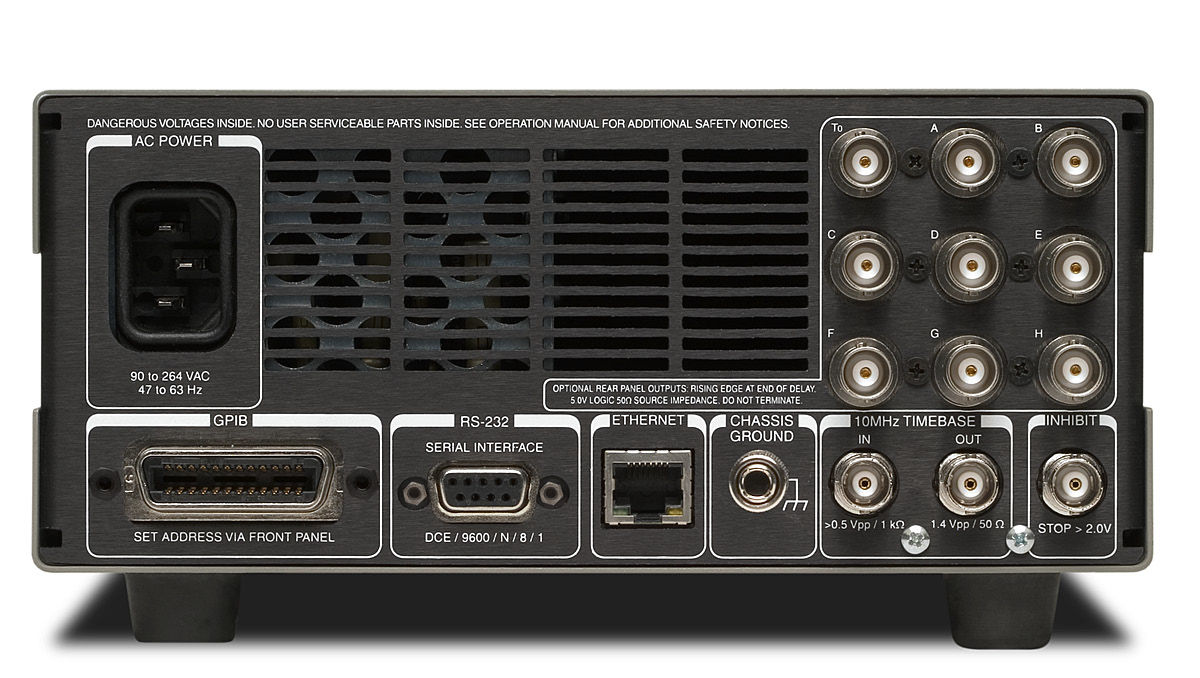

The DG645 digital delay/pulse generator is a highly flexible design capable of providing accurate pulses at rates up to 10 MHz. Compared to it's predecessors the DG645 features a much lower jitter, higher accuracy, faster trigger rates, more outputs and is capable of remote control via Ethernet, GPIB and RS-232 communication interfaces.

Typical operation of digital delay generators that includes measuring time intervals by counting fast clock cycles, can lead to errors due to a timing indeterminacy. The DG645 reduces timing indeterminacy to zero by measuring the timing of triggers according to the internal clock and making up for analog delays, resulting in a 100x reduction of jitter.

Specifications

  • Electrical output: delay, pulse
  • Other characteristics: programmable, digital
