  • Pulse generator

max. 400 MHz

Article: 00116147

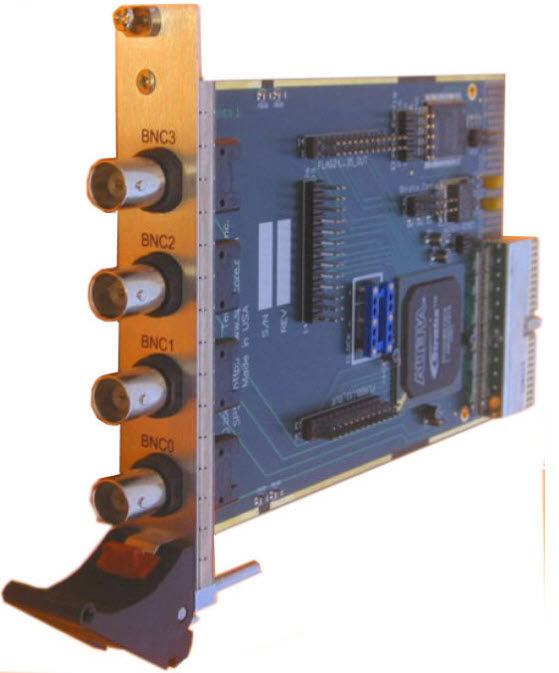

Pulse generator

The PulseBlaster-cPCI, manufactured by Wuntronic, is a high-speed, programmable multi-channel pulse generator, designed in the CompactPCI form factor. This device offers up to 24 independently-controlled channels, and instructions words of up to 4096. It also has modifiable output rates, and powerful program flow characteristics.

This pulse generator is capable of accommodating pulse programs with highly-flexible commands of up to 4,000 program words. These programs words feature loops (nested 8 level-deep), large loop counter (20 bits, up to 1,048,576 iterations), and deterministic WAIT op-codes, with user-programmable latency and high-retriggering frequency.

The typical applications of the PulseBlaster-cPCI involves experiments, process controls in electron, and nuclear and quadrupolar resonances (ESR,NRM,NQR). It is also applicable for mass spectrometry, ultra-sound, radar, medical imaging and other similar test technologies. The available designs of this product are PulseBlaster, PulseBlasterESR or PulseBlasterESR-PRO.

Specifications

  • Electrical output: pulse
