  • Silicon resistor / SMD / high-power / shunt

PSR series

Article: 00118608

Silicon resistor / SMD / high-power / shunt

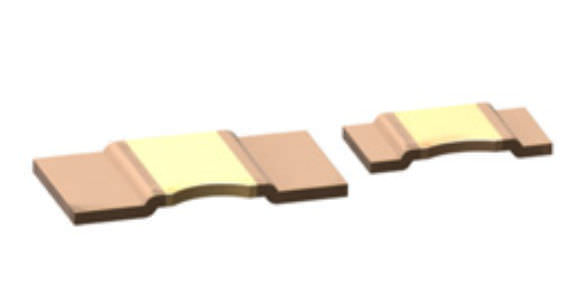

High Power Type Shunt Resistors (PSR Series)

High power shunt resistor ; PSR series cover ultra low resistance (0.2m?) and have excellent temperature coefficiency.
Ideal for current detection under high current circuit.

PSR400ITQF
Size:10x5.2mm (3921)
Rated Power: 4W
Resistance Tolerance:F (±1%)
Resistance range[?]: 0.3m to 3.0m
Operating Temperature[°C]:-55 to 170

PSR500HTQF
Size:15x7.75mm(5931)
Rated Power: 5W
Resistance Tolerance:F (±1%)
Resistance range[?]:0.2m to 2.0m
Operating Temperature[°C]: -55 to 170

Specifications

  • Technology: silicon
  • Mounting: SMD
  • Electrical characteristics: high-power, shunt
  • Other characteristics: for current detection
  • Power rating: 4 W (0.01 hp), 5 W (0.01 hp)
