Rf Connection Components

Spinner

  • Coaxial switch / compact / coaxial cable / changeover
  • Coaxial switch / compact / coaxial cable / changeover

Article: 00118806

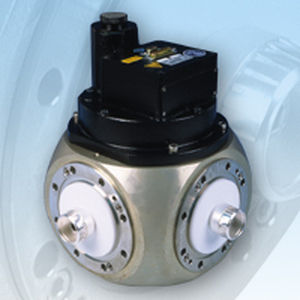

Coaxial switch / compact / coaxial cable / changeover

Manifold switching operations in transmitting and receiving stations for mobile communication, broadcasting, radar and satellite systems as well as medical devices are executed by changeover switches, 2-way switches (transfer switches) or step switches with electrically controlled or manual operation.



SPINNER 2-way switches use a hypocycloidic gear. This technology makes it possible to combine an extremely compact switch drive and a very short switching time. A sophisticated mechanical design guarantees that the auxiliary contacts (e. g. for a carrier safety loop) are actuated before opening and after closing the RF contacts. Thus SPINNER switches reliably prevent accidental switching under load (’hot switching’).



Where ultra-fast switching times are essential, such as in radar systems, electronic switches with pin diodes are used.



SPINNER switches offer the following advantages:

low insertion loss and high isolation
low VSWR over the whole frequency range
short switching times and high reliability
long service life up to 2 mill. switching cycles for switches with mechanical drive
almost unlimited service life for switches with pin diodes

Specifications

  • Type: coaxial
  • Size: compact
  • Other characteristics: coaxial cable, changeover
