Data Device Corporation

  • USB interface avionics system for UAVs / MIL-STD-1553
  • USB interface avionics system for UAVs / MIL-STD-1553

BU-67102Ux, BU-67202Ux, BU-67103Ux

Article: 00119463

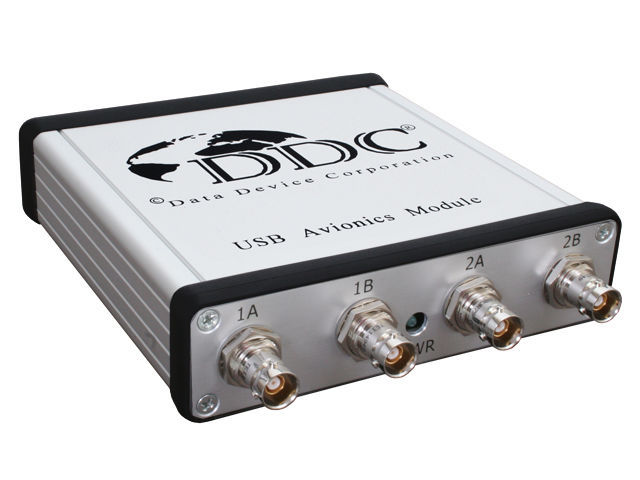

USB interface avionics system for UAVs / MIL-STD-1553

The BU-67X02U/3U USB device provides a portable off-the-shelf interface to 1 or 2 dual-redundant MIL-STD-1553 channels, 4 ARINC 429 Receive channels, 2 ARINC 429 Transmit channels, 8 user-programmable digital discrete I/O's, IRIG-B time code input, and 1 Pulse-per-Second (PPS) Output. The device is available as 1553 only, 429 only, or fully populated with 1553/429 Multi-IO. The USB device can be powered directly from the USB interface or by an external power source (included).

Its small size, light weight, and durable construction make the BU-67X02UX a common tool for use in field service, flight line test equipment, and flight instrumentation applications. The BU-67103UX provides the same exact capabilities in a non-rugged package that is suitable for lab applications.

Each 1553 channel can operate in Bus Controller (BC) or Multi-RT (0 to 31) modes, and each mode has the ability to run a concurrent Bus Monitor (MT). The ARINC 429 channels can support full data line rate for low, high, and ARINC 575 speed communications with automatic slew rate adjustment while providing multiple reception and transmission methods for ARINC messages.

Specifications

  • Protection level: MIL-STD-1553
  • Other characteristics: USB interface
