3 - 150 mm | TBH

Article: 00121248

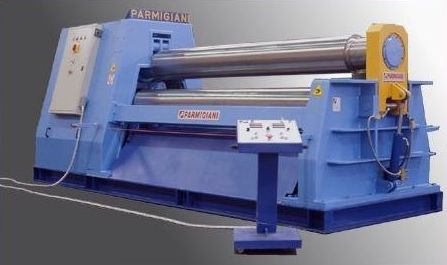

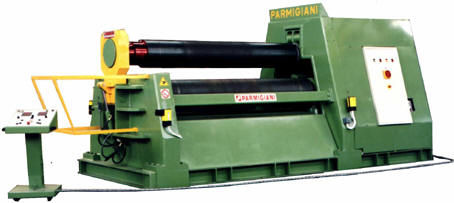

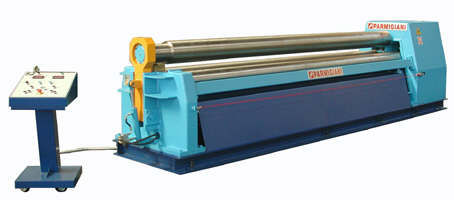

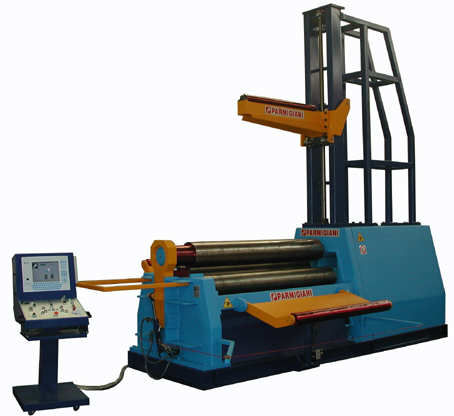

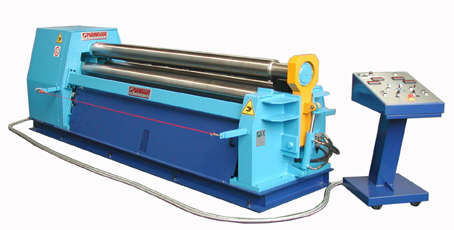

Hydraulic plate bending machine / with 3 rollers

3-Roll Double Pinch Plate Bending Rolls type TBH. Fully Hydraulic.
Rolls length up to 8.000mm, plate thickness up to 150 mm.

The TBH bending machines are equipped with the exclusive Parmigiani Parallelism System (PPS) for rolls parallelism control (closed ring type).
The PPS assures the max precision in rolls positioning also after several years of intensive work.

Rolls rectilinear slideways coated with antifriction material (AVG System).
(No maintenance; High loading and carrying capacity; Smooth and stable positioning).

All rolls (mounted on roller bearings) are driven by separate hydraulic motor for each roll.
CNC on request.

Specifications

  • Operation: hydraulic
  • Number of rollers: with 3 rollers
