Rolling Machines Rolling Mills

Parmigiani Macchine Sas

  • Plate bending machine with 4 rollers
  • Plate bending machine with 4 rollers
  • Plate bending machine with 4 rollers

3 - 280 mm | VBH

Article: 00121247

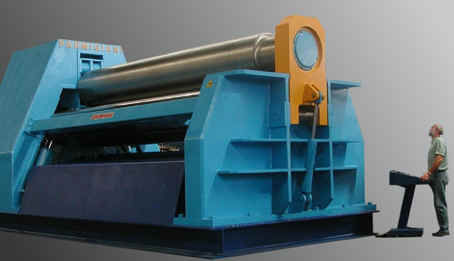

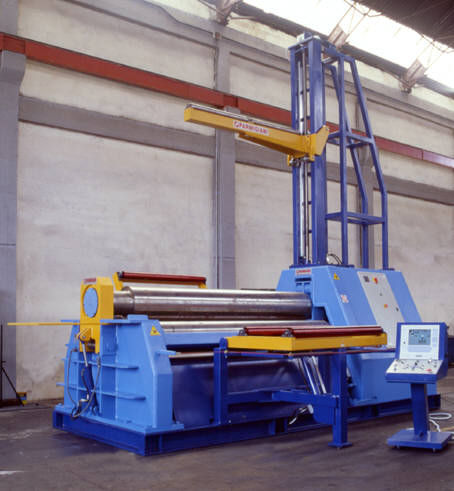

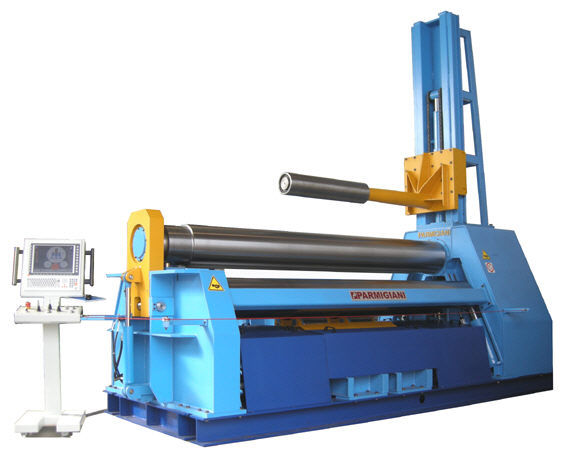

Plate bending machine with 4 rollers

4-Roll Double Pinch Plate Bending Rolls type VBH.
Fully Hydraulic. Rolls length up to 8.000mm, plate thickness up to 280 mm.

Rolls driven via separate hydraulic motor for each roll, with automatic speed compensation between top and lower rolls. (Best plate feeding; High efficiency; Low energy requirement).

PPS system for rolls parallelism control (closed ring type). The PPS assure the max. precision in rolls positioning also after several years of intensive work.

Rolls rectilinear slideways coated with antifriction material. (No maintenance; High loading and carrying capacity; Smooth and stable positioning).

All rolls journalled in spherical roller bearings (Long life lubricated). A complete range of material feeding and handling equipment is available. CNC on request.

Specifications

  • Number of rollers: with 4 rollers
