  • Configurable safety module

16 digi | DNSL-ZMR

Article: 00121600

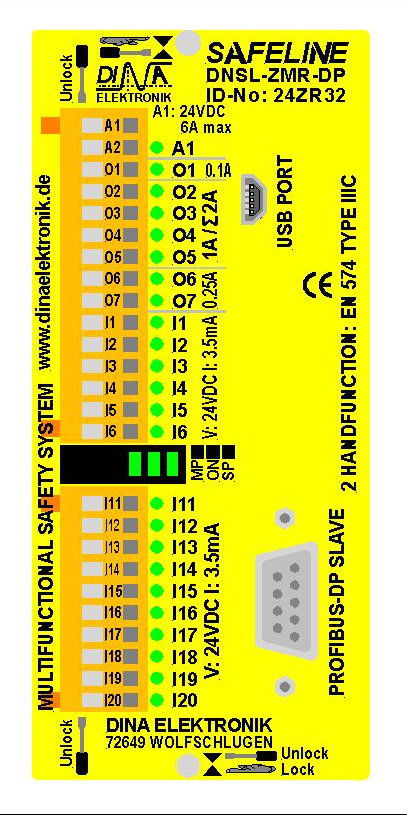

Configurable safety module

The two power supply inputs in this system are for the whole system. The series comprises 16 safe digital inputs, which ensure several functions, among which protection cover, permission, emergency stop, operation mode switch and various other safety functions. The inputs can also be used to monitor two motions, safe speed and safe standstill. Note that there are two proximity switches, which can be used to sense the speed for monitoring.

The four redundant positive switching outputs are suitable for safe functions, while the two positive switching outputs are configurable for two clock outputs or two switching outputs. Finally, there is also one switching output for information output or switching output. The V24 or USB interface is suitable for diagnostic or data transfer.

Specifications

  • Options: configurable
