  • Electromechanical relay / security / panel-mount / 2 way DSSS RF transmission

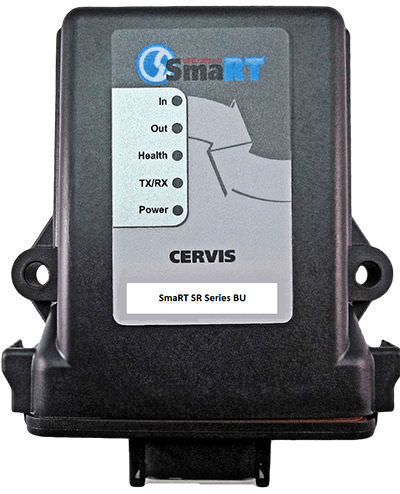

5A max, 250VAC/30VDC , IP67| SmaRT SR series

Article: 00121588

Electromechanical relay / security / panel-mount / 2 way DSSS RF transmission

Single Safety Relay: Four pole with force guided contacts according to EN 50205 8A
Three or Five Form A NO relays, 5A max @ 250Vac/30Vdc inductive load, 5A max resistive. Model dependent.
Factory installed ARC Suppression optional
Low voltage AC/DC and High Voltage AC input power options
Expansion options via CAN Bus Network
Antenna Internal or External
IP67/NEMA 4 environmental rating, GORE-Tex vented
IEC60068-2-6 Vib/Shock type tested
900MHz 10mW or 2.4GHz 100mW radio(s)
Two way DSSS RF transmission
Wireless association (pairing)
Six diagnostic LEDs
FCC and IC approval(s)

Specifications

  • Type: electromechanical
  • Function: security
  • Form: panel-mount
  • Other characteristics: 2 way DSSS RF transmission
  • Load current: Min.: 0 A
