Implement Industry Ideas
  • Security cabinet / hinged door / floor-standing / steel

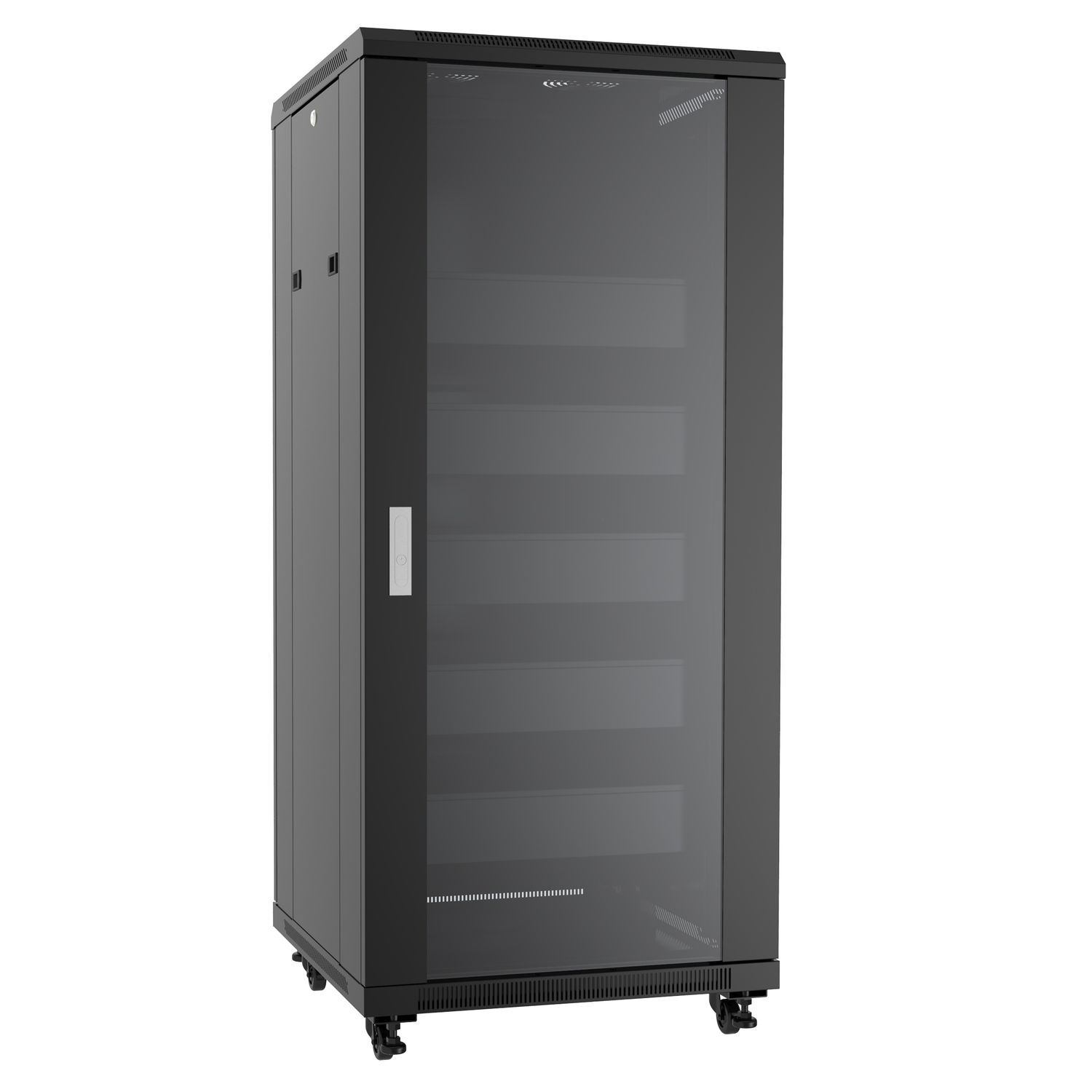

RB-AV Series

Article: 00123267

Security cabinet / hinged door / floor-standing / steel

The RB-AV Series is a cost-effective and fully assembled enclosed rack system designed for A/V and Security applications. Fully assembled, the RB-AV Series includes pre-installed shelves, filler panels, casters and leveling feet.
¶Features

Constructed in light duty 16-gauge steel.
Includes two (2) pairs of EIA-310-D compliant square hole punched rails with 19 mounting.
Starter pack of M5 screws and cage nuts included.
For 10-32 hardware see the 1421CNABK Series.
Locking tempered glass front door is opens a full 180°.
Locking solid steel rear door.
Doors can be flipped to hinge from opposite side.
Passive cooling vents located on top, bottom and sides.
Includes provision for optional fans on top panel.
Removable locking side panels.
Removable cable access panels on cabinet top and bottom.
Ships assembled - ready to install.


Specifications

Bottom of cabinet includes:
Four (4) adjustable leveling feet
Four (4) recessed rubber casters work great on carpet.
Includes pre-installed vented shelves and filler/blank panels (see table below).
Shelf lip is folded down making it easy to slide equipment into the rack.
Rails can adjust in depth in 25mm increments.
Grounding studs provided on frame.
Finished in smooth black powder paint.
Tested to 950 lbs of equipment load capacity.
RoHS Compliant.

Specifications

  • Type: security
  • Construction: hinged door
  • Mounting: floor-standing
  • Material: steel
