• DIN rail signal isolator-converter

TV500, ST500

Article: 00124434

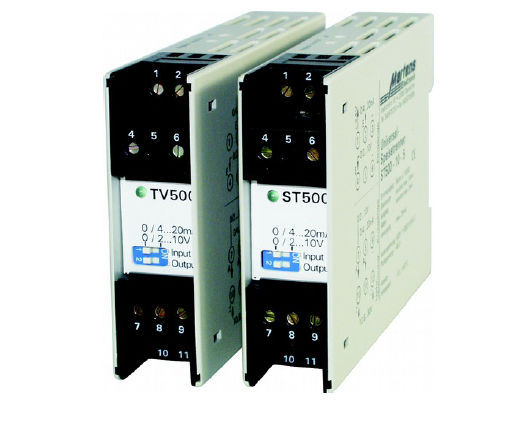

DIN rail signal isolator-converter

TV500 isolating signal converter can be used to isolate and convert field signals 0/4..20 mA or 0/2..10 V DC into industry standard signals for process control systems. The ST500 provides a fully floating isolated transmitter supply.
Technical data
Power supply
Supply voltage:100..265 V AC or 10.8..30 V AC/DC
Frequency AC:47..63 Hz
Power consumption: Operating
temperature:-10..+60 °C
CE-conformity:EN 55022, EN 60555-2,
IEC 61000-4-4/5/11/13
Inputs
Current:0/4..20 mA selectable, Ri = 25 ?
overload max. 100 mA
Voltage:0/2..10 V DC selectable,
Ri approx. 40 k?, overload max. 100 V

Specifications

  • Other characteristics: DIN rail
