  • Single-row slewing bearing / ball / internal-toothed
  • Single-row slewing bearing / ball / internal-toothed

WD-06 series

Article: 00125259

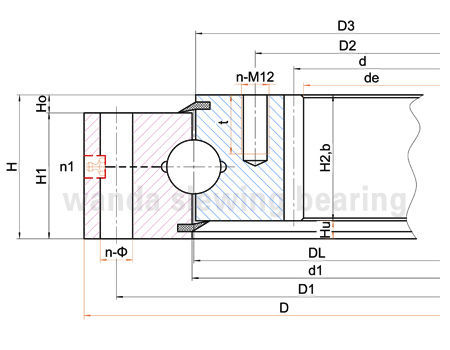

Single-row slewing bearing / ball / internal-toothed

The Thin Section Slewing Bearing has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly

Tytle:WD-062

Wight/KG:31-91

Strengths:The Oil nipple's location can be change according to the user's application.

Application:

1. food machinaery,

2.canning machinery

3.environmental machinery etc.

Gear data :

0.8?-0.5."Km" is addendum reduction; m: module; z: teeth nos.

Specifications

  • Teeth: internal-toothed
  • Rolling element: ball
  • Geometry: single-row
  • Outer diameter: Min.: 486 mm
  • Width: 56 mm
  • Inner diameter: Min.: 327 mm
