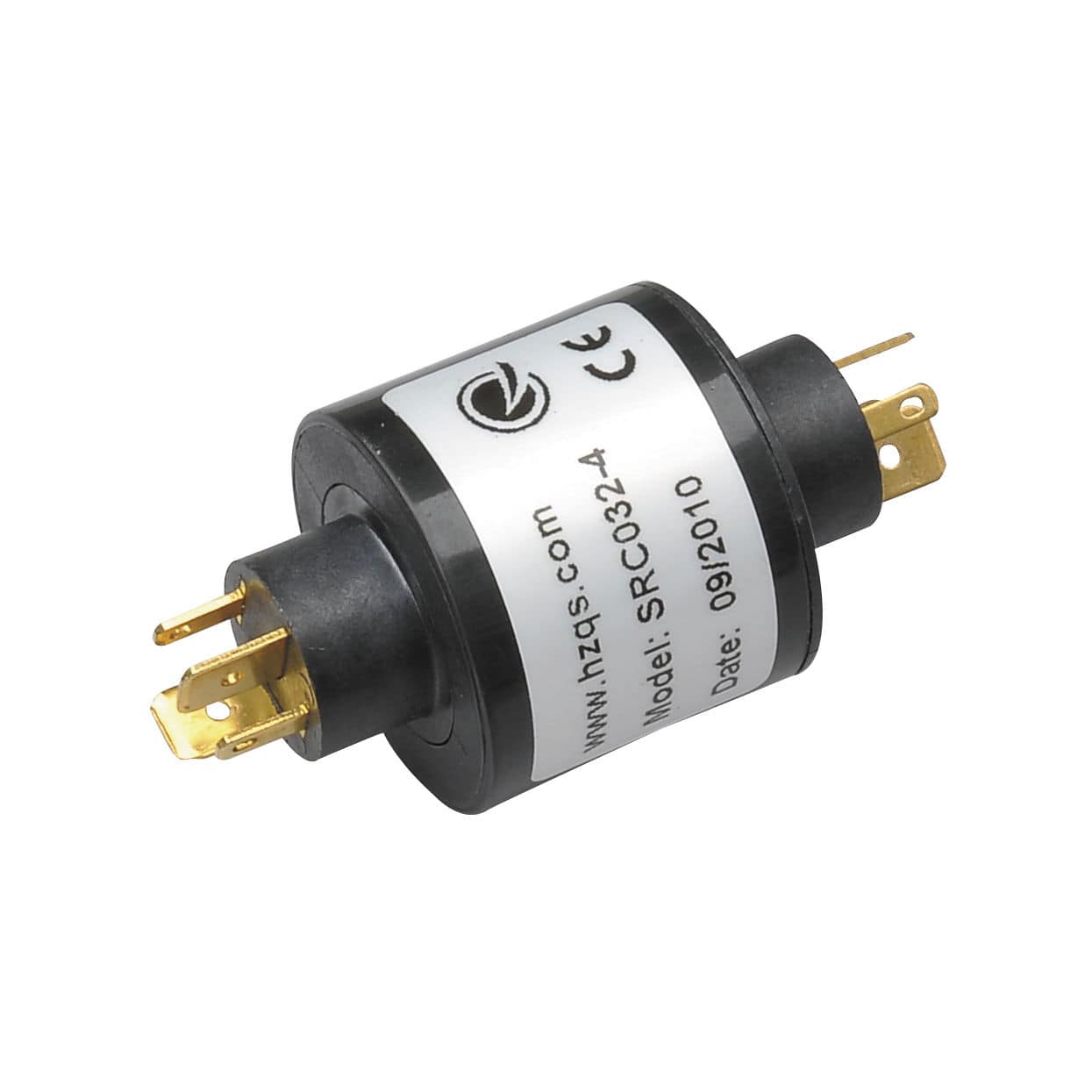

• Capsule slip ring / for packaging / metal / with gold contacts

SRC032-4

Article: 00125348

Capsule slip ring / for packaging / metal / with gold contacts

This pin connection slip ring can replace the Mercury slip ring . it with compact size and can carry high current . it mostly used to package machine.

SRC032-2
outdiameter: 32mm
length 28mm
2pins,
14A/pin
rotary speed:0-250rpm
voltage:220V AC/DC
Dielectric strength: 500V DC@50HZ 60S
insulation resistant:500Mohm @500V DC
noise:10mohm
working temperature: -20?---+80?


SRC032-4
outdiameter:32mm
length 28mm
4pins,
14A/pin*2pin
2A/pin*2pin
rotary speed:0-250rpm
voltage: 220V AC/DC
Dielectric strength: 500V DC@50HZ 60S
insulation resistant :500Mohm @500V DC
noise: 10 mohm
working temperature: -20?---+80?

options:
protection grade:IP65
Housing material: AL, SS

Application:
Package Machine, food Machine etc .

Specifications

  • Configuration: capsule
  • Applications: for packaging
  • Material: metal
  • Other characteristics: with gold contacts, IP65
  • Current: Min.: 2 A
  • Voltage: Min.: 240 V
  • Number of contacts: Min.: 2 unit
