100 - 150 V, 1 A, 2.54 mm | 3240 series

Article: 00125430

SMT integrated circuit mount / socket

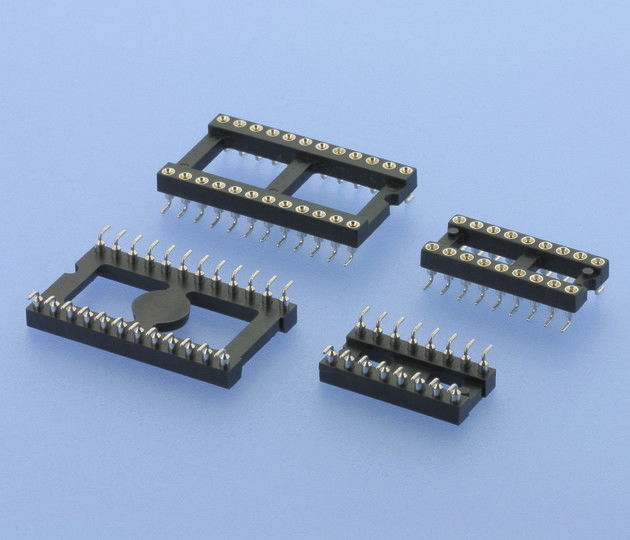

SMT IC Sockets 2.54mm Pitch - Gull Wing Screw machined Contacts
Case/Cover/Actuator Thermoplastic, rated UL94 V-0
Contact Material Sleeve: screw machined brass
Clip: 4-Finger-Clip, Beryllium-Copper
Contact Surface Acc. to options (see below), over Ni (2 ... 3µm)
Solderability IEC 60512-12A
Contact Resistance 1000M?
Test Voltage 1kVRMS
Voltage Rating 100VRMS / 150VDC
Current Rating 1A
Temperature Range -55°C ... +125°C
Processing Reflow soldering
