N-CPST

Article: 00125851

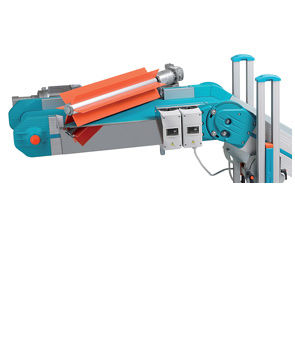

Bow arm sorter / automatic / for aluminum

turdy frame made of primary extrusion aluminium section, Alloy 6060, protected by anodisation treatment thickness 15 micron.
Standard cut-proof, oil-proof belt, with high grip green PVC covering (ref. Pantone 320); vulcanised belt joint.
Minimum and maximum temperature resistance of belt -10°C to +60°C.
Standard transmission group of the conveyor consisting of 0.12 kW three-phase, asynchronous motor coupled with worm reduction unit with permanent lubrication.
Standard transmission group of the separator consisting of 0.09 kW three-phase, asynchronous motor coupled with worm reduction unit with permanent lubrication and torque limiter.
Fixed standard conveyor speed 3 m/min.
Conveyor complete with Siemens Start and Stop double switch/motor cut-out (one for the conveyor and one for the separator), with 5 m cable and 4P CE plug (3 phases + ground).
Standard motor supply voltage 400 Volts/50 Hz.

Specifications

  • Type: bow arm
  • Operational mode: automatic
  • Product applications: for aluminum
