  • Stepper motor

PF Series

Article: 00128240

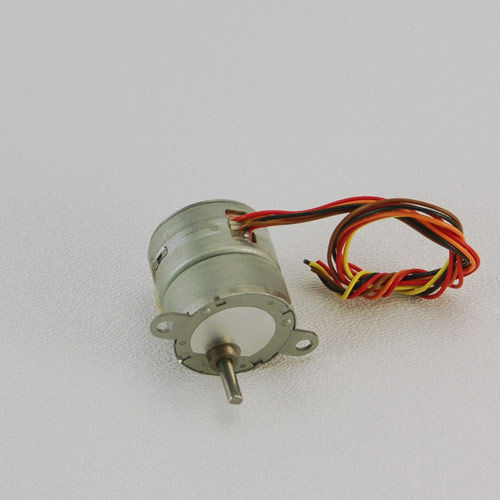

Stepper motor

The foundation of Nippon Pulse Motor, the tin-can rotary stepper motor (PF series) is our most recognizable product. An innovator in the motion control industry, Nippon Pulse has been manufacturing the rotary stepper motor since 1965.

Product Features of the Rotary Stepper Motor

- A conventional, magnet-driven rotary stepper motor, the tin-can offers a high-performance yet cost efficient solution
- Rotating in proportion to the number of pulses sent to the motor, the tin-can series is frequency synchronized and can change speed depending on the frequency of the pulse signal
- Motor diameters between 20 and 55mm
- Torque between 8 and 180mN?m on non-gearhead models
- Gearhead torque between 10 and 2500mN?m
- Over 1,500 cataloged/engineered windings
- Over 50 available external modifications (flanges, leadwires, shafts, etc.)
- Gearhead ratios between 6/25 and 1/300
- Bipolar and unipolar windings
- System integration/consultation
- Model shop motors available within 24 hours
- Unmatched one-on-one product support from our sales engineering staff

Specifications

  • Type: stepper
