EU0.75/4.0 Series

Article: 00132627

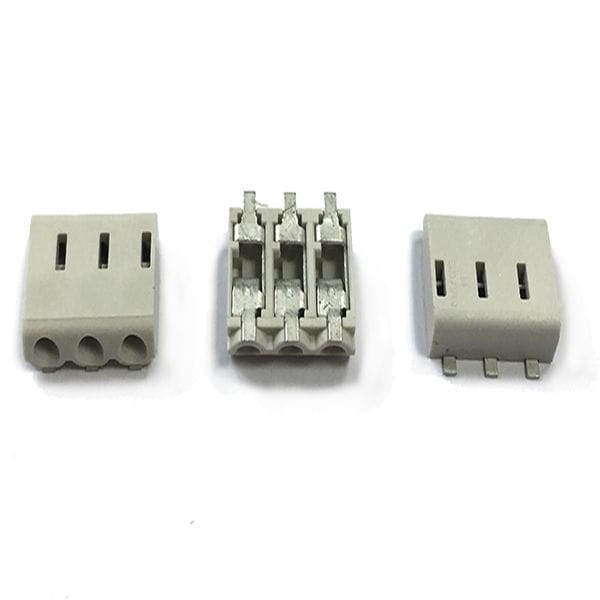

Push-in terminal block / SMT

SMD Series wire push-in connector for LED strip light

Material:
1. Housing: PPA+GF UL94 V-0
2. Spring clip: Phosphor Bronze, Tin plated

Electrical:
1. Voltage rating/ Current rating: IEC 300V/9A
2. Contact resistance: 20m? Max.
3. Insulation resistance: DC500V, 500m? Min
4. Withstanding Voltage: AC2000V (1 Minute)
5. Pole: 1/2/3P

Mechanical:
1. Connection capacity: 0.2-0.75mm2/AWG24-18
2. Stripping length:7-9mm
3. Operating temperature:-40? to +105?

Certification?
1. UL/cUL
2. TUV
3. CE

Specifications

  • Connection: push-in
  • Mounting: SMT
  • Nominal voltage: Min.: 0 V
  • Current: Min.: 0 A
  • Cross-section: Min.: 0.2 mm² (0 in²)
