JUT3 Spring Series

Article: 00132625

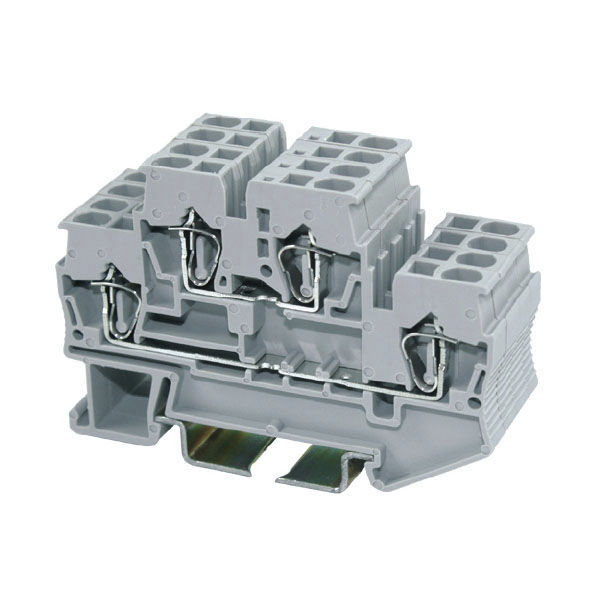

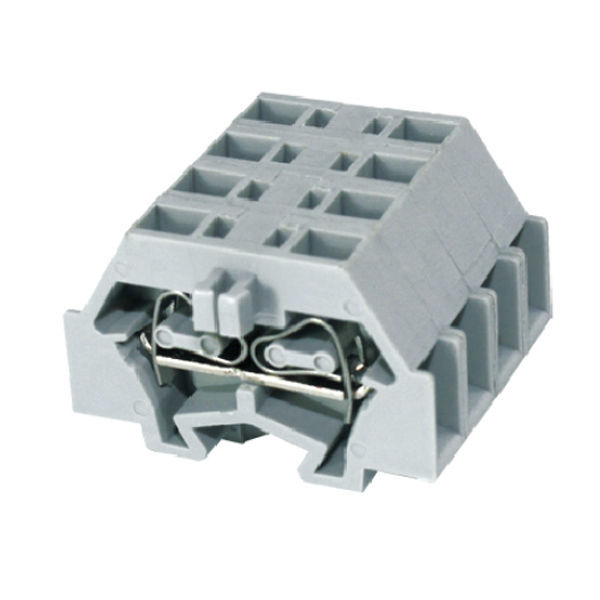

Spring cage connection terminal block / front-entry / screwless / DIN rail-mounted

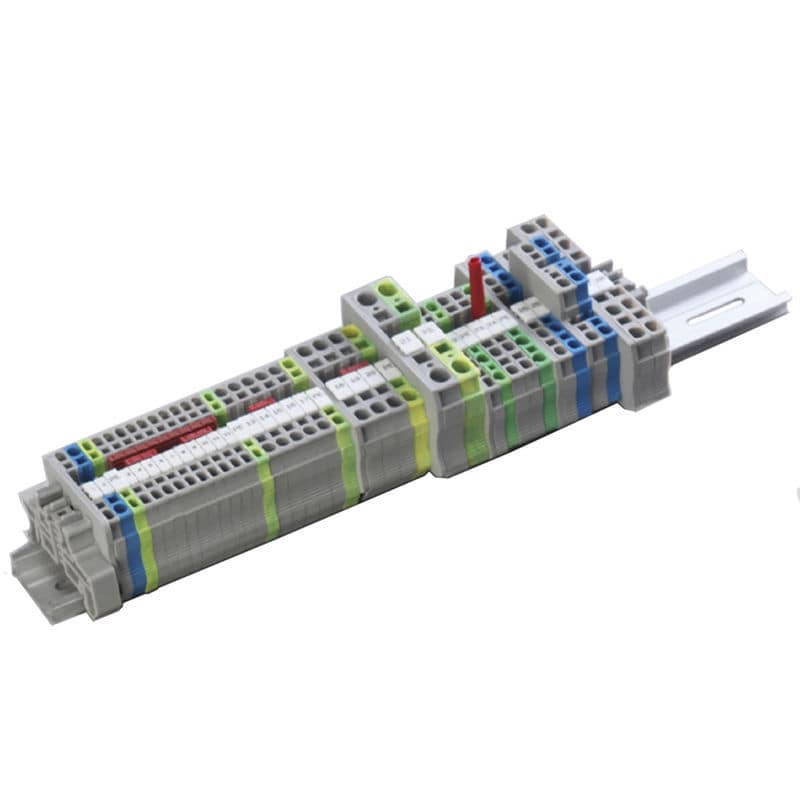

JUT3 Spring Clamping Series DIN rail terminal blocks

Return-pulling type spring terminal connectes wire from upside, and the wire-in mouth of lead is set at the top of terminal, whose advantage is as folows:

1. Wire-crossing groove is installed adjacently to terminal row, which can make full use fo space of electric cupboard.
2. Heighten wiring density,
3. Providing good angle for watching wiring position and simplify wiring operation.

Additionally, the return-pulling spring terminal owns following characteristics:
1. Clear mark system;
2. Maximum wiring capacity;
3. Flexible in sert-pull type bridging component system.

Material:
Housing: PA66(Nylon)
Conductor: Pure Copper plated with Tin
Spring: SUS 301

Specifications

  • Connection: spring cage connection, screwless, front-entry
  • Mounting: DIN rail-mounted

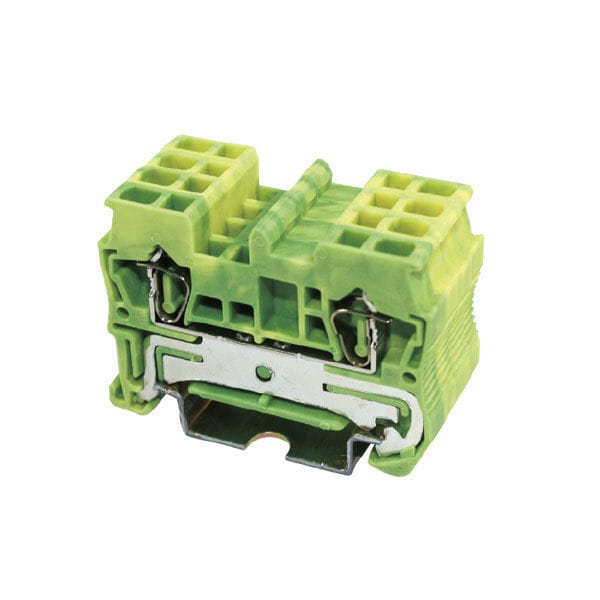

  • Other characteristics: plastic, grounding, double-layer
  • Nominal voltage: Min.: 500 V
  • Current: Min.: 17.5 A
  • Cross-section: Min.: 0.14 mm² (0 in²)
