AHP2 series

Article: 00132928

Positive-displacement pump / hydrostatic pressure test / multi-fluid / air-driven

Air consumption 56 scfm (1.59m³/minute)
Infinitely variable output pressure and flow
7 litre reservoir capacity

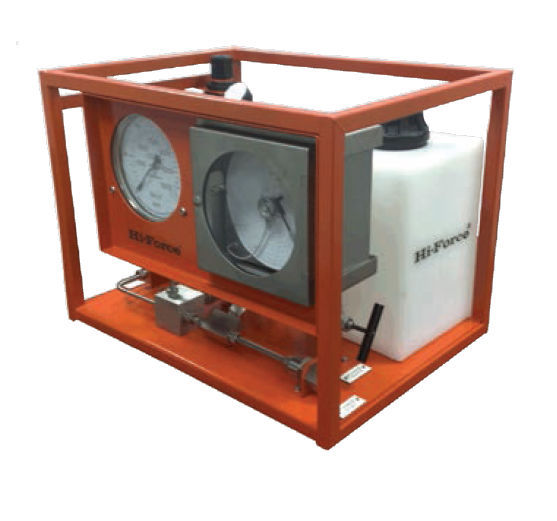

The Hi-Force AHP2 series of air driven hydrostatic pressure testing pumps offers a choice of 5 models
with output pressure capacities ranging from 17 Bar (246 PSI) to 1634 Bar (23700 PSI). All models
are compact design and suitable for use with various fluids including water and are supplied with a
150mm diameter glycerine filled hydraulic pressure gauge (calibrated on request), inlet airline filter,
lubricator and pressure regulator unit, lightweight fluid reservoir, pump start/stop valve and a robust
stainless steel skid mounted framework. Optional extras include stainless steel reservoir, stroke counter
system and pressure isolation valve.

Specifications

  • Type: positive-displacement
  • Applications: hydrostatic pressure test
  • Media: multi-fluid
  • Operation: air-driven
