• Positive-displacement pump / hydrostatic pressure test / multi-fluid / air-driven

AHP3 series

Article: 00132929

Positive-displacement pump / hydrostatic pressure test / multi-fluid / air-driven

Air consumption 175 scfm (4.96 m³/minute)
Infinitely variable output pressure and flow
Fluid inlet 1.1/4? BSPF

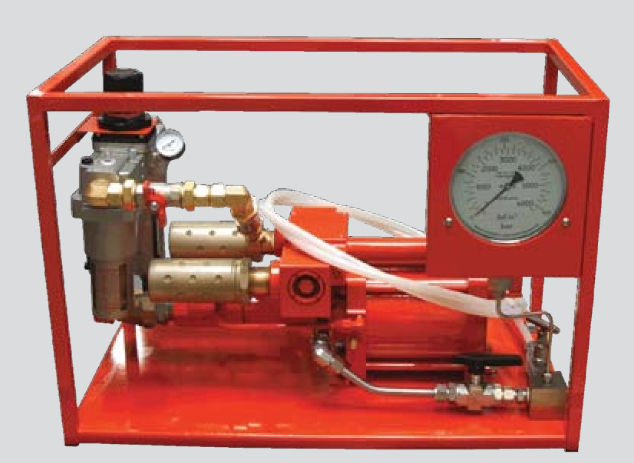

The Hi-Force AHP3 series of air driven hydrostatic pressure testing pumps offers a choice of 3 models
with output pressure capacities ranging from 42 Bar (609 PSI) to 700 Bar (10000 PSI). All models
are compact design and suitable for use with various fluids including water and are supplied with a
150mm diameter glycerine filled hydraulic pressure gauge (calibrated on request), inlet airline filter,
lubricator and pressure regulator unit, pressure isolation valve, pressure release valve, fluid inlet via Y-type
fluid strainer, pump start/stop valve and a robust stainless steel skid mounted framework. Optional
extras include stainless steel reservoir, stroke counter system, distance piece for chemical duty and chart
recorder.

Specifications

  • Type: positive-displacement
  • Applications: hydrostatic pressure test
  • Media: multi-fluid
  • Operation: air-driven
