Turbine Flow Meters

Pce Instruments

  • Impeller flow meter
  • Impeller flow meter
  • Impeller flow meter

0.2 ... 30 m / sec. | PCE-VA 20

Article: 00137292

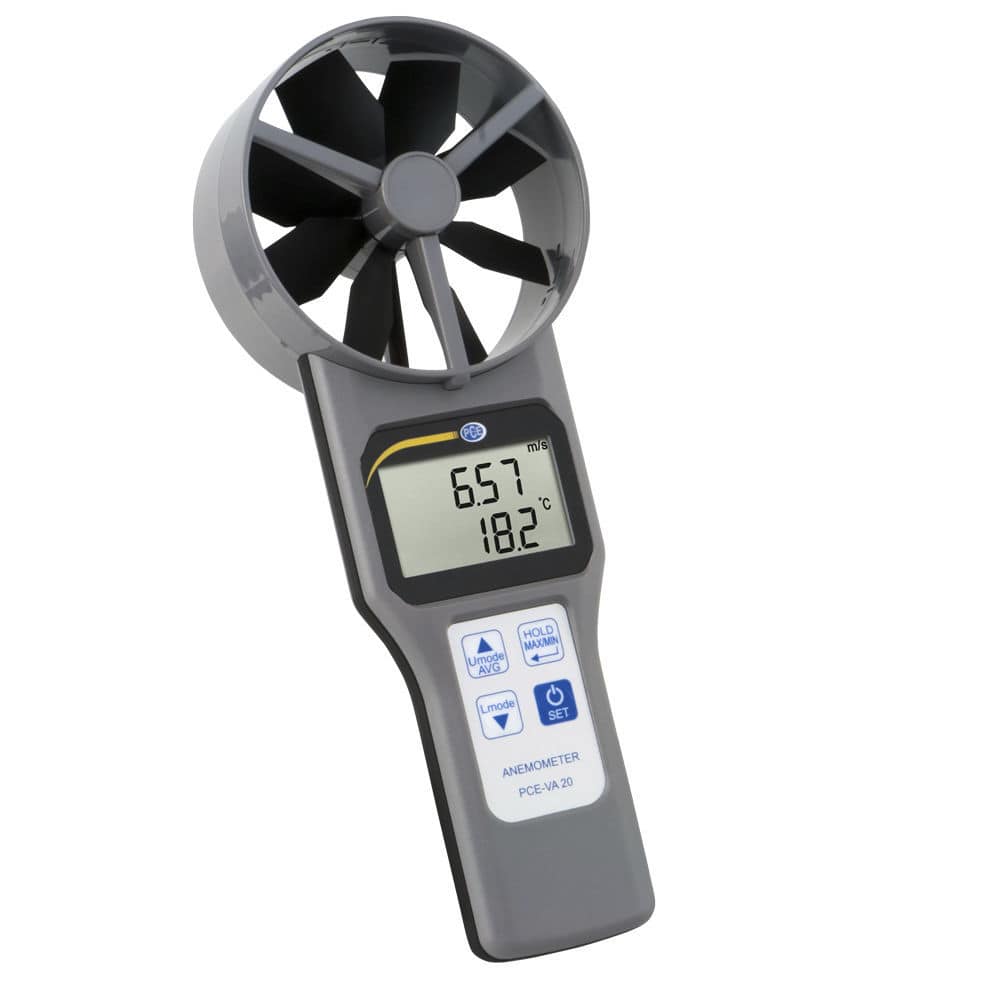

Impeller flow meter

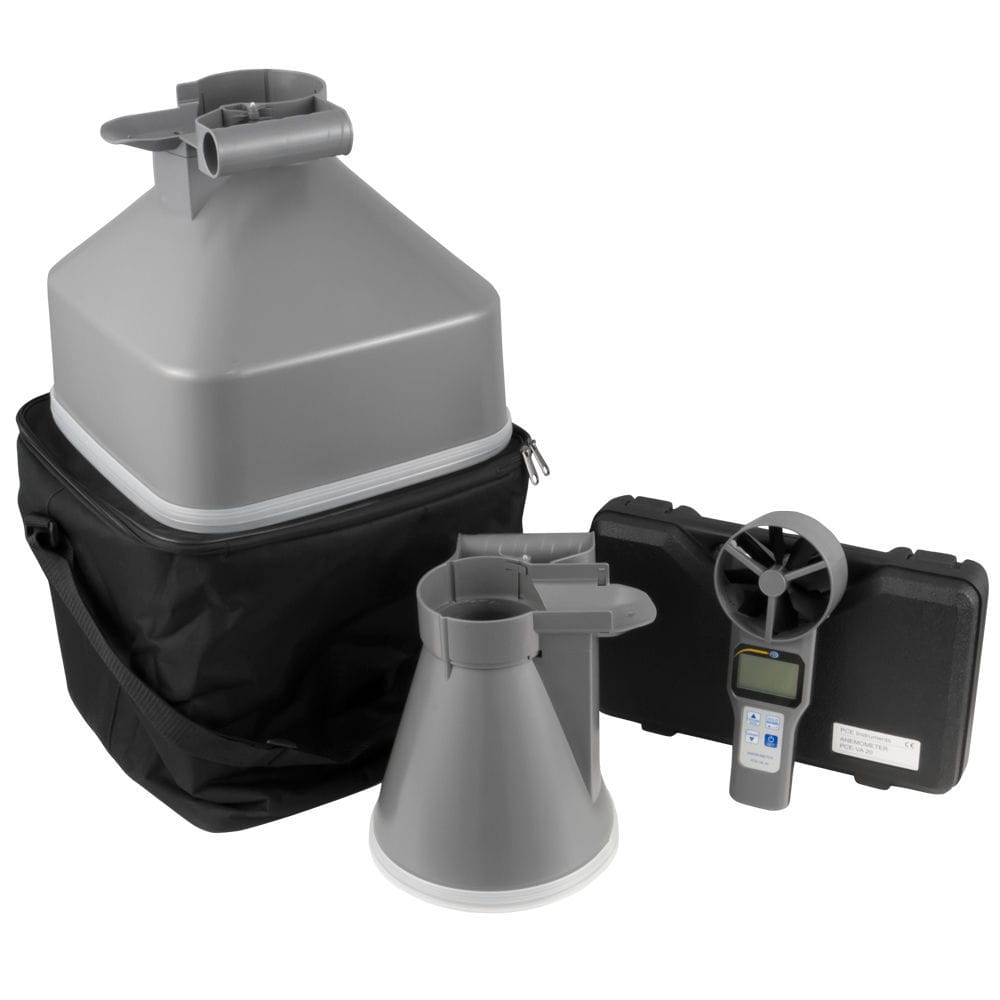

Impeller Anemometer PCE-VA 20 -SET incl. Flow hood
Impeller anemometer with backlit / 10 cm diameter impeller / for measuring various parameters / parameters / extreme value measurement / HOLD function / auto power off / Low battery warning indicator


Technical Specification

Wind speed measurement range
0.2 ... 30 m / sec.

Wind speed accuracy
20 m / sec .: ± (3% MW of +0.3 m / sec.)

Air temperature measuring range
-20 ... +60 ° C

Wind temperature accuracy ± 0.6 ° C


Wind temperature resolution 0.1 ° C / ° F
Humidity measuring range 0.1 ... 99.9% RH

Humidity resolution
0.1% RH

Humidity accuracy ± 3% RH (at 25 ° C and 10 ... 90% RH)
other: ± 5% RH

Temperature response time 60 seconds

Humidity response time 60 seconds

LCD update 1 x per second

Wet bulb temperature display -20 ° C ... +59,9,9

Dew point display -5 ... +59.9 ° C

Flow rate display 0 ... 99999 m³ / min

Flow resolution 0.1 (0 ... 9999.9) or 1 (10000 ... 99999)

Automatic power off
after 20 minutes of inactivity

LCD size 32.5 x 54 mm (H x W)

Operating Conditions 0 ... + 50 ° C, RH
Storage conditions -10 ... +50 ° C, RH
Dimensions 269 x 106 x 51 mm

Weight approx. 200 g

Power supply 4 batteries (AAA)

Specifications

  • Technology: impeller
