• Adjustable pressure controller / digital

EDRA

Article: 00138163

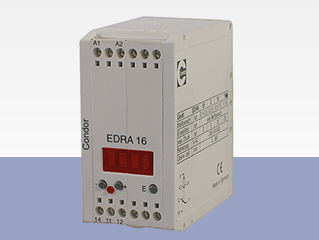

Adjustable pressure controller / digital

Pressure range up to 16 bar

? For panel board mounting

? Relay output

? Digital display

Electronic pressure switch with integrated relative pressure sensor for panel board mounting, quick-connect for pneumatic tube, digital display for mains pressure indication and threshold programming (two switching points), relay output (isolated SPDT) and isolating transformer acc. to VDE 0550.

Function: The device evaluates the applied pressure to the sensor. On exceeding an upper threshold the relay is deactivated; when falling below a lower threshold the relay is activated again. Both thresholds also are adjustable without medium. The on/off thresholds can be programmed via the display during operation - the actual pressure status is shown on the display.

Specifications

  • Options: adjustable, digital
