MTP series

Article: 00138257

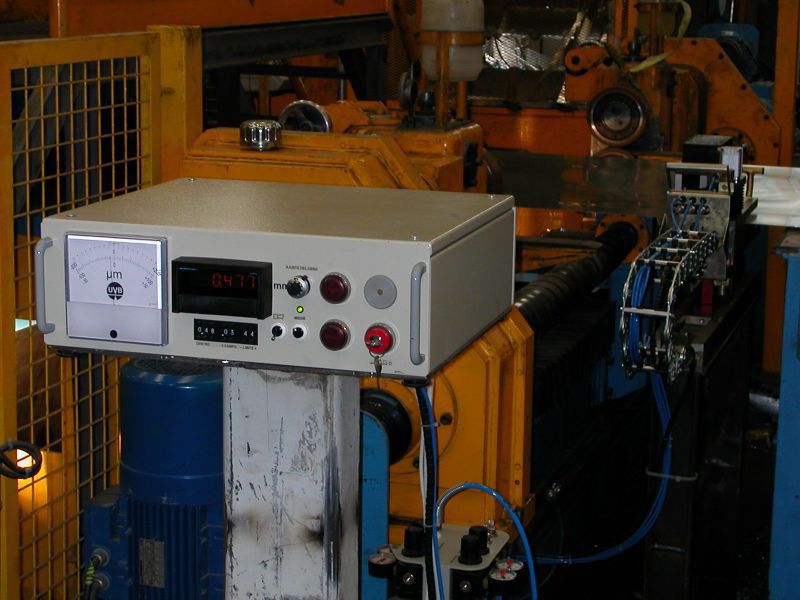

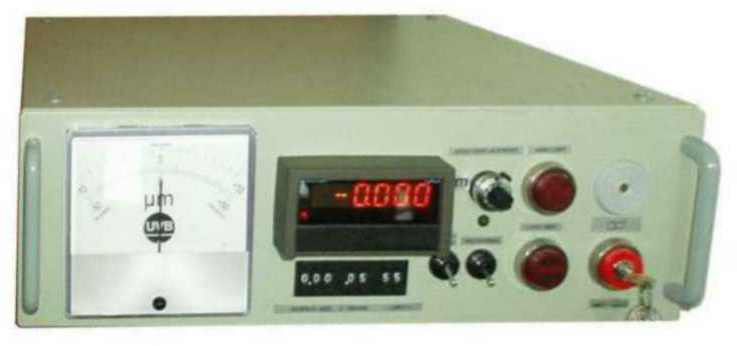

Control unit

MTP-1301 (-2001, -3001) proportions (width × hight × depth) : 445 × 140 ×450 mm
1. Digital representation of measured thickness (0.54" high LED display)
2. Analog representation of deviation from nominal thickness 120 × 120 mm (+ A85 or A3)
3. Digital switch modul for set up of nominal thickness, scale of analog output and limits (+ PA85 or PA3 internal or external)
4. Front-panel button cover
5. Potentiometer "ZERO ADJUST" (± 15 µm)
6. Light alarm (upper limit)
7. Klaxon alarm (bottom and upper limits)
8. Switch - klaxon on
9. Switch - measuring on
10. Light alarm (bottom limit)
11. Power switch
MTP-1301A (-2001A, -3001A) width automatic guidance
6. Light press button IN LINE (light signal MEASURING)
9. Unblocking for hand-transposition of head
10. Press button OUT LINE

Specifications
