Universal Controllers And Regulators

Hesch Industrie Elektronik Gmbh

  • Differential pressure controller
  • Differential pressure controller

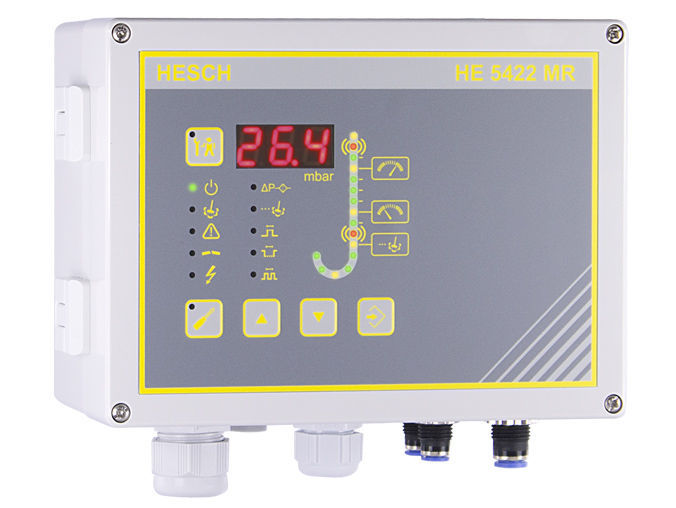

HE 5422MR

Article: 00138181

Differential pressure controller

Differential pressure ranges of 35, 90 or 450 mbar
100 ? 240 VAC, 24 VDC
Analogue output 4?20 mA, galvanically isolated
Measuring hose connection Ø 6 mm and compressed air Ø 8 mm with quick connectors
Housing dimensions 200 × 150 × 100 mm (W × H × D)
Relay switching outputs: operating and fault indicator, ?p-cleaning, low Alarm, high Alarm
Basic accuracy ± 1% of measuring range
Explosion protection ATEX Zone 22
Level of protection IP65
Service interface with USB/TTL-Adapter (Option)



With the HE 5422MR we offer you a differential pressure controller for differential pressure ranges of 35, 90 or 450 mbar, which prevent incorrect measurement with the integrated measuring hose cleaning.
The compact ?2-in-1-device? facilitates the installation and doesn?t need a adjustment between differential pressure controller and a separate measuring hose cleaning. The wide-range power supply (100 ? 240 VAC) of the differential pressure controller enables worldwide using.
Furthermore the operation with 24 VDC is possible. To adjust the controller there is a keypad direct on the device. Also the adjustment can be done with a service-pc and the USB/TTL-adapter HE 5851 (Option) and the software ?EasyTool Controls?.

Specifications

  • Options: differential
