Universal Controllers And Regulators

Insitutec

  • Digital controller
  • Digital controller

1 channel, 10 - 990 V | DC.PS.1.300

Article: 00138283

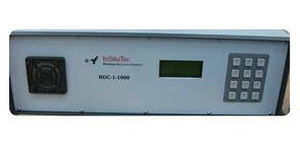

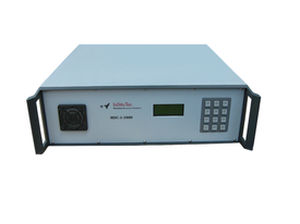

Digital controller

The DC.PS.1.300 digital controller is a single axis controller equipped with high speed precision digital architecture and 1000 volt amplifier. The chassis encompasses high speed precision converters with capability of achieving displacement precision > 1:400,000 at 2 kHz sampling rates and controller loop rates up to 33 micro-seconds.
The DC.PS.1.300 enables input shaping, feedforward and standard PID controles for fast settling time capability with a user friendly display and keypad. In particular, the input shaping is designed to enable the user to easily tune the nanopositioning stage system and achieve fast settling times.
Have questions about our digital controllers or would like a custom solution? Just contact one of our engineers here.
Features include:
Precision at 1:400,000 at 2 kHz sampling rates.
33 microseconds control loop rates.
1000 volt amplifier with 300 mA current capability.
Digitally tune your input signal using input shaping to suppress unwanted natural frequencies.
Adjust feedforward velocity gain term to improve settling times.
User friendly keypad and display to program settings.
Settings automatically store to an EPROM when unit is powered off and on.

Specifications
