Universal controllers and regulators

Novus Produtos Eletronicos

  • Process controller

N2000 series

Article: 00138242

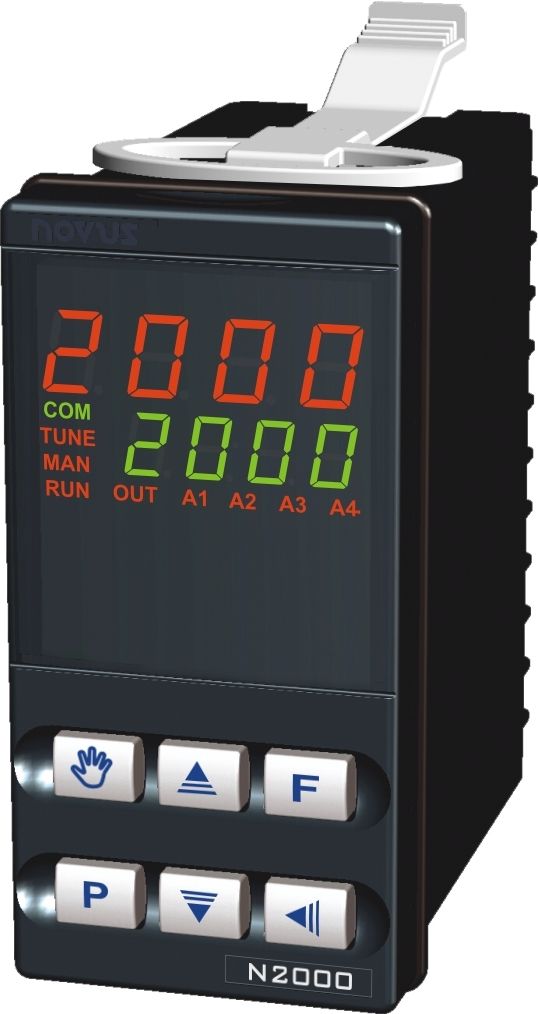

Process controller

Universal Controller N2000 is a real breakthrough in versatility for holding in one single instrument all the major features required in the vast majority of industrial processes.
With a sophisticated and consistent software and its advanced truly universal circuitry, the N2000 accepts configuration of both input signal and control output through the front keyboard without any internal hardware change.
Power supply for remote loop powered transmitters is standard and is a must for high-end applications.
The N2000S is specific for applications in controlling servo motorized valves, servo actuators and dampers by means of two time proportional relays.

- Accepts thermocouples type J, K, T, N, R, S; Pt100 RTD, linear 4-20 mA, 0-50 mV, 0-5 Vdc.
- Dual SPST 3 A / 250 Vac relays and dual SPDT 5 A / 250 Vac relays can be individually programmed for control or alarm.
- Isolated 4-20 mA output with 1500-level resolution, maximum 550 ohm load for control or PV / SV retransmission. It can also be configured for digital input or output (10 Vdc / 20 mA).
- Remote setpoint input for 4-20 mAdc signal (N2000).
24 Vdc / 30 mA supply output for remote transmitter excitation.
- RS485 comm with Modbus RTU protocol (optional).
- Auto tuning PID control.
- Auto/Manual mode, bumpless transfer.
- Programmable Soft start up to 9999 seconds.
- Ramp and Soak: 7 programs of up to 7 segments each. Can be linked to create longer programs of up to 49 segments.

Specifications
