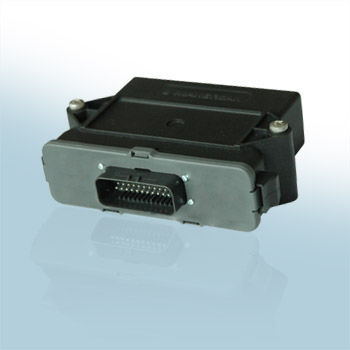

• Software configurable digital controller / CAN Bus

MO 680.H1X

Article: 00138129

Software configurable digital controller / CAN Bus

Features:
Software configurable controller with fault detection for inputs and outputs, monitoring of power supply for under-voltage and over voltage, internal watchdog.
- USB2CAN interface for configuring device and diagnostics
- Multifunction inputs(voltage,current,resistance,frequency)
- Software selectable input functionality.
- Up to 8 proportional valve drivers (0 to 2.5A per channel)
- Up to 4 Hi-Side switch outputs (0 to 1.5A per channel)
- Current sensing and protection for a outputs
Communications:J1939 or CANopen protocol
Casting Material:GF 30 % Polyamid
Protection Sealing:Silicon Rubber
Operating Voltage:10 - 30V
Power Consumption:Max. 0.4 A @ no load
Operating Temp.:-40°C to +80°C
Protection Class: IP67
Connector: 35 pin Tyco Seal Connector

Specifications

  • Other characteristics: CAN Bus, software configurable
