• Stepper motor power unit / 3-axis

PSD 320

Article: 00138158

Stepper motor power unit / 3-axis

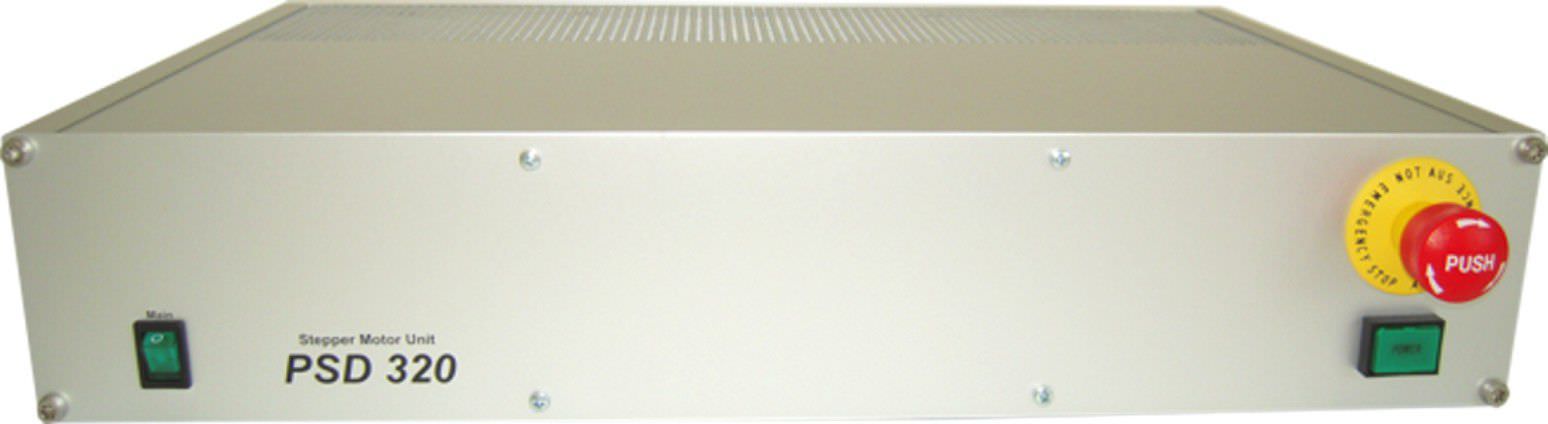

PSD320-M - 3 axes Stepper Power Unit

The stepper power unit PSD320-M is designed for controlling three 2-phase stepper motors. Control input of the device is an universal clock/direction interface.

Modular stepper power unit for controlling up to four 2-phase stepper motors
Digital interface for clock/direction, limit switches and inputs/outputs
Bipolar amplifier modules for 2-phase stepper motors,
microstepping (up to 25600 steps/rev)
adjustable motor current up to 4,0 Amps
Optically isolated inputs for limit switches, control LED
Safety relay according EN60204, Emergency-Stop switch internally and remote
Primary switched power supply, wide range input 110 - 250VAC, 200VA
Aluminum profile housing (WxDxH) - 450x275x88,5mm
Options:
USB converter for EdiTasc and GALAAD

Specifications

  • Type: for stepper motors, 3-axis
