• Double universal joint / single

70 series

Article: 00138897

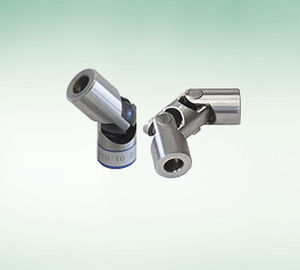

Double universal joint / single

ATLANTA shaft joints - smooth transfer of axially rotational motions in machinery
Overview ATLANTA shaft joints program:
Ball and socket joints - design B
single and double design, static breaking moment 7 to 6000 Nm, for speed up to 800 U/min.
Universal shafts acc. DIN 808, standard design with plain bearings, single and double design, static breaking moment 40 to 1200 Nm, for speed up to 1000 U/min.
Universal shafts acc. DIN 808, special design with needle bearings, single and double desighn, static breaking moment 80 to 800 Nm, for speed over 1000 U/min.

Specifications

  • Configuration: double, single
  • Torque: Min.: 7 Nm (5.16 ft.lb)
  • Diameter: Min.: 4 mm
  • Speed: 4000 rpm (25132.74 rad.min-1), 800 rpm (5026.55 rad.min-1)
  • Operating angle: Min.: 0 °
