FV1480

Article: 00140587

CNC machining center / 3-axis / vertical / heavy-duty

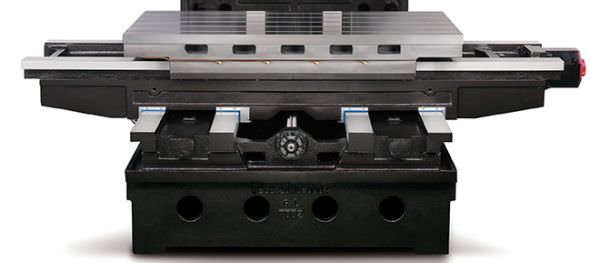

The FV1480 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.

Specifications

  • Control type: CNC
  • Number of axes: 3-axis
  • Spindle orientation: vertical
  • Other characteristics: heavy-duty
  • X travel: 1400 mm
  • Y travel: 800 mm
  • Z travel: 700 mm
  • Rotational speed: 6000 rpm (37699.11 rad.min-1)
  • Power: Min.: 22 kW (29.5 hp)
