Vertical Positioning Stages

Standa

  • Vertical stage / translation

max. 25 mm | 7VT173-25 series

Article: 00142174

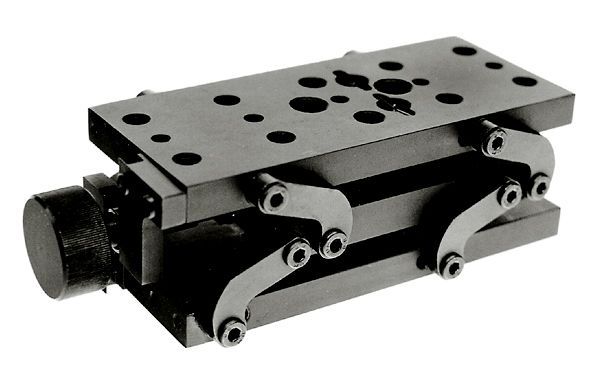

Vertical stage / translation

Adjustable Height Platform 7VT173-25 of original design is a stable vertical translation stage of 25 mm travel range. Maximum load capacity ? 3 kg. A polished lead screw has 0.5 mm pitch. It allows to define the height of a platform with 20 ?m sensitivity. Arrays of mounting holes M6 and ?6.5 with 25 mm spacing are identical on the upper and lower plates. Adjustable Height Platform is ideal for use with 7T175-50 or 8MT175-50 Translation Stages when it is necessary to define one or two horizontal coordinates at a certain height. The platform is produced from black anodized aluminium, the lead screw block is produced from stainless steel and bronze

Specifications

  • Orientation: vertical
  • Technology: translation
